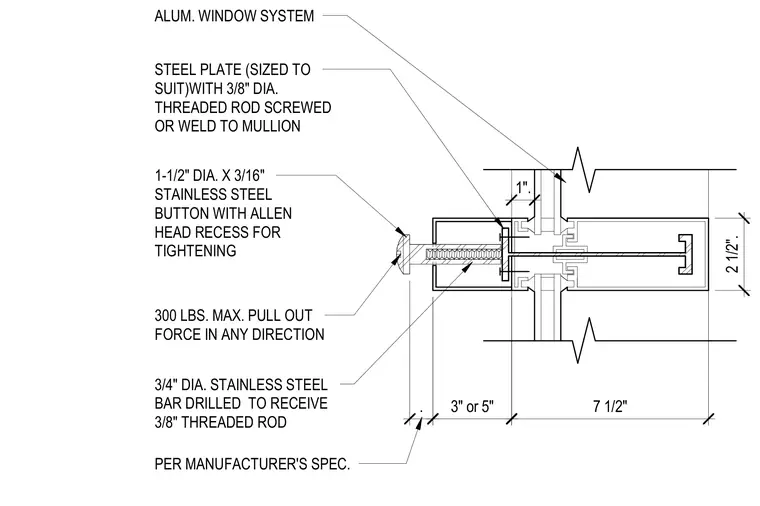

An aluminum window system connects to a stabilizing anchor assembly designed for a maximum pull-out force of three hundred pounds in any direction. A steel plate, sized to suit, is either screwed or welded to the mullion per the manufacturer's specification and receives a three-eighths-inch diameter threaded rod. This threaded rod extends into a three-quarter-inch diameter stainless steel bar that is drilled to receive the rod. A one-and-a-half-inch diameter by three-sixteenths-inch stainless steel button with an allen head recess allows for tightening.
7 1/2" 1-1/2" DIA. X 3/16" STAINLESS STEEL BUTTON WITH ALLEN HEAD RECESS FOR TIGHTENING 2 1/2". 3" or 5" 3/4" DIA. STAINLESS STEEL BAR DRILLED TO RECEIVE 3/8" THREADED ROD 1". ALUM. WINDOW SYSTEM 300 LBS. MAX. PULL OUT FORCE IN ANY DIRECTION STEEL PLATE (SIZED TO SUIT)WITH 3/8" DIA. THREADED ROD SCREWED OR WELD TO MULLION . PER MANUFACTURER'S SPEC.
