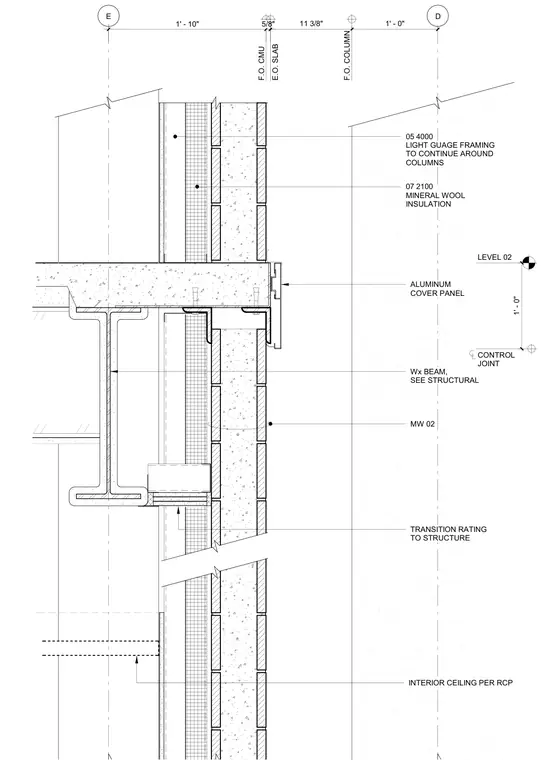

A concrete masonry unit wall intersects the level two concrete slab edge and a wide-flange steel beam. Light gauge framing continues around the structural columns, supplemented by mineral wool insulation. An aluminum cover panel conceals the transition at the slab edge alignment. A control joint is integrated into the masonry assembly below the level two elevation. Interior ceiling framing aligns with the structural system per the reflected ceiling plan.
1' - 10" 5/8" F.O. CMU CONTROL JOINT E.O. SLAB LEVEL 02 MW 02 Wx BEAM, SEE STRUCTURAL E 07 2100 MINERAL WOOL INSULATION INTERIOR CEILING PER RCP 11 3/8" 1' - 0" D F.O. COLUMN 1' - 0" ALUMINUM COVER PANEL 05 4000 LIGHT GUAGE FRAMING TO CONTINUE AROUND COLUMNS TRANSITION RATING TO STRUCTURE 11
