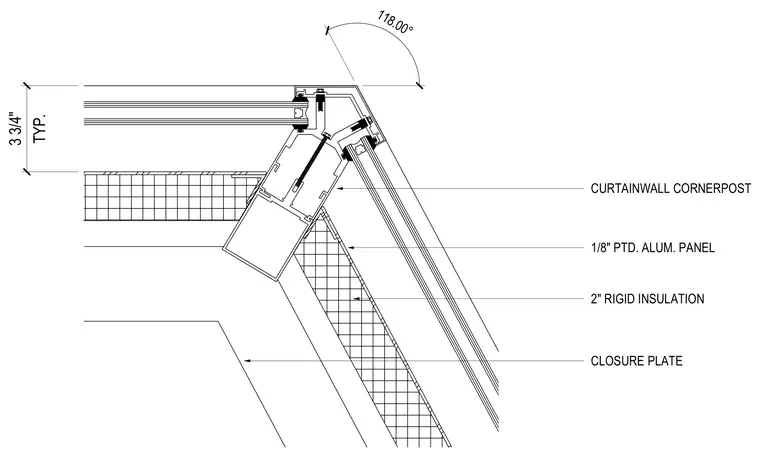

This plan detail shows a curtain wall corner assembly featuring a curtain wall cornerpost set at an 118-degree angle. An exterior 1/8-inch painted aluminum panel wraps the corner alongside two inches of rigid insulation. An interior closure plate completes the junction, maintaining a typical depth of 3-3/4 inches.
CLOSURE PLATE CURTAINWALL CORNERPOST TYP. 3 3/4" 118.00° 2" RIGID INSULATION 1/8" PTD. ALUM. PANEL
