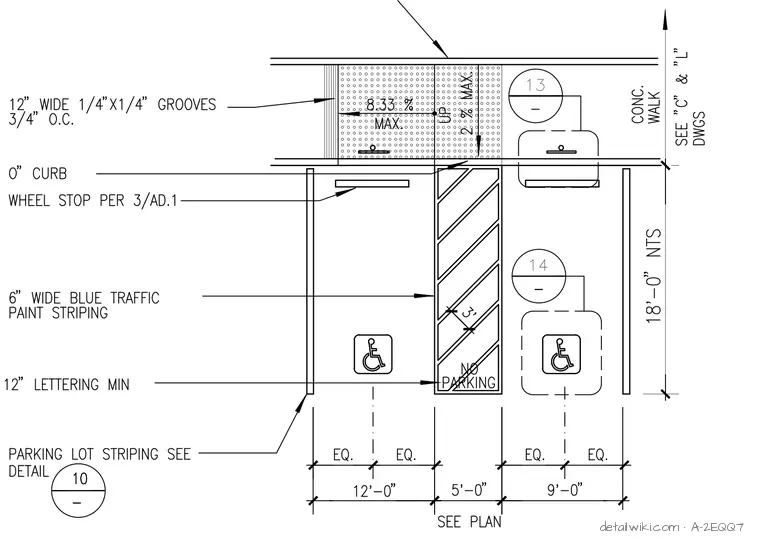

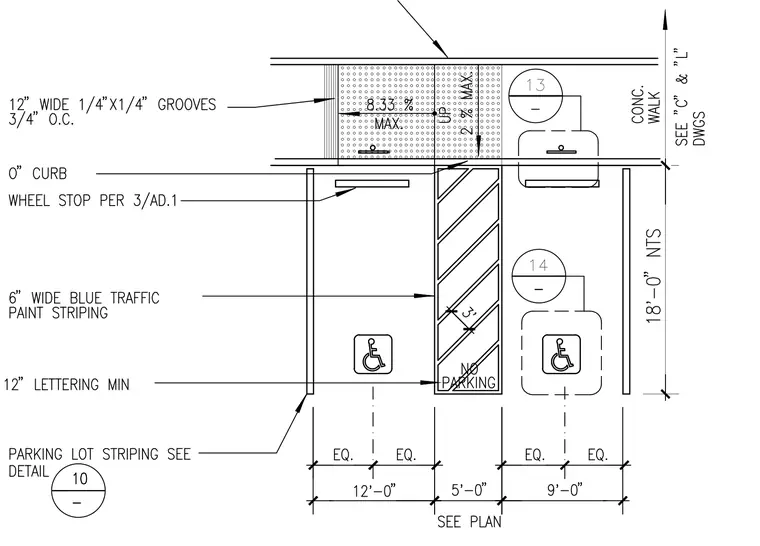

The accessible parking stall measures 9 feet wide by 18 feet long, with an adjacent 5-foot wide by 18-foot long access aisle. The access aisle includes 6-inch wide blue traffic paint striping and 'NO PARKING' lettering. A truncated dome tactile warning surface at the transition to the concrete walk features 1/4-inch by 1/4-inch grooves at 3/4-inch on center. Ramp slope is limited to 8.33 percent maximum, with a 2 percent maximum cross slope. A wheel stop is installed per detail 3/AD.1.
