Adjacent concrete tilt-up wall panels are separated by a three-quarter-inch joint gap. A backer rod is installed at each face of the panel joint with a continuous sealant running from the footing to the top of the panel.

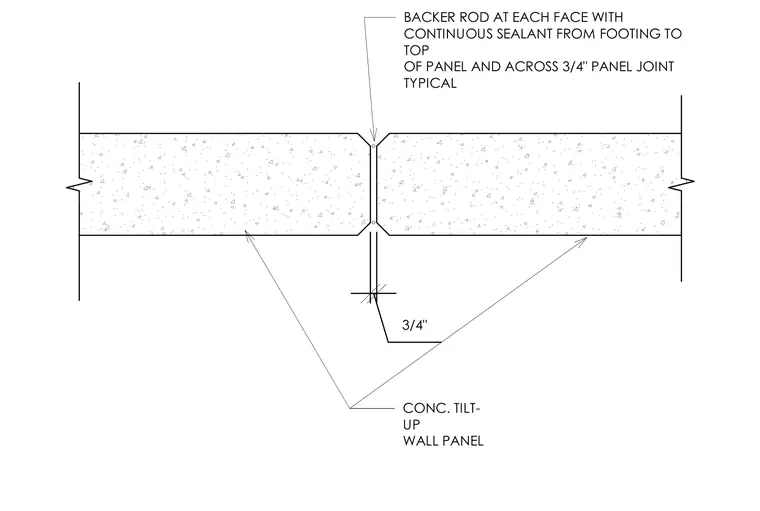

BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 3/4" PANEL JOINT TYPICAL CONC. TILT- UP WALL PANEL 3/4"
