Architectural · A-2EF4M

Metal Panel Sill at Slab

Materials

Concrete Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall Composite

Elements

Beams Walls Facades / Cladding Floors / Slabs Waterproofing / Flashing Insulation Drainage Roof / Floor Openings

Connections

Shear Stud / Composite

About this detail

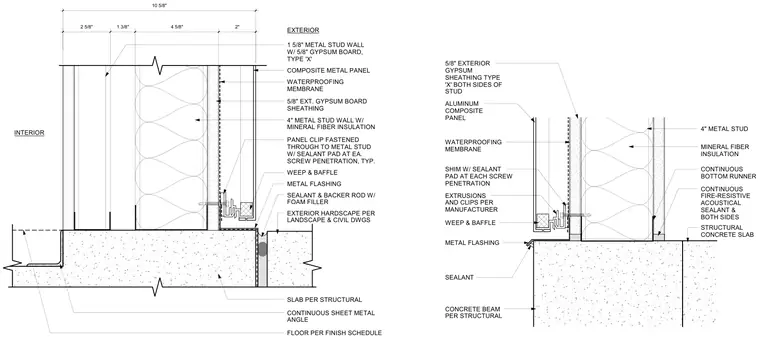

A composite metal panel facade terminates at a structural concrete slab and beam. The exterior cladding consists of aluminum composite panels backed by five-eighths-inch exterior gypsum sheathing, four-inch metal studs filled with mineral fiber insulation, and continuous panel clips fastened with sealant pads at each screw penetration. A continuous metal flashing, weep and baffle system, and sealant with backer rod and foam filler manage moisture drainage at the base. The interior partition features an independent one-and-five-eighths-inch metal stud wall with type X gypsum board, a continuous sheet metal angle, and a floor finish per the finish schedule. A waterproofing membrane is applied across the concrete substrate, and exterior hardscape interfaces at the sill level per landscape and civil drawings.
