Architectural · A-2EDYK

Roof Parapet and Soffit Detail with Wood Slat Ceiling

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Membrane / Roofing

Elements

Roofs Parapets Ceilings Decks Waterproofing / Flashing Insulation Connections / Plates

About this detail

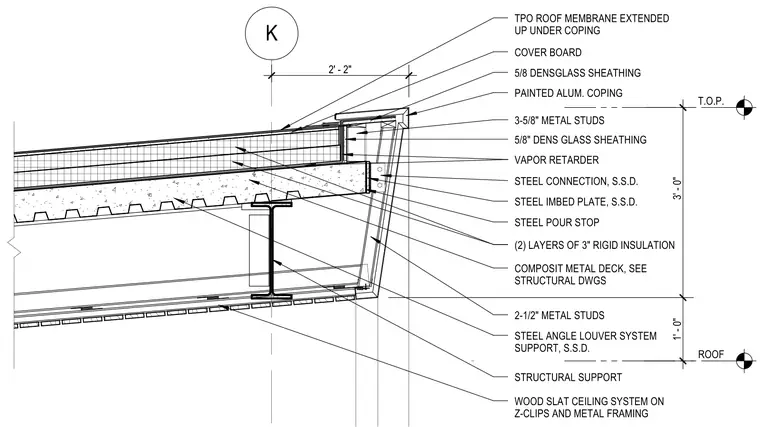

This parapet and roof edge detail transitions from a TPO roof membrane extended up under a painted aluminum coping down to a suspended wood slat ceiling system. The roof assembly consists of a cover board, five-eighths-inch dens-glass sheathing, two layers of three-inch rigid insulation, a vapor retarder, and a composite metal deck supported by structural steel beams. The parapet wall framing utilizes three-and-five-eighths-inch metal studs with exterior dens-glass sheathing. The edge condition incorporates steel embed plates, steel connections, and a steel pour stop. Below the roof slab, two-and-one-half-inch metal studs and steel angles support an exterior louver system and a wood slat ceiling hung on Z-clips and metal framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
