Architectural · A-2EDVE

Bay Window Jamb and Living Wall Intersection Detail

Materials

Steel Cold-formed Steel Weathering Steel (Cor-ten)Timber / Wood Metal (misc.)

Elements

Beams Walls Windows Facades / Cladding Waterproofing / Flashing Insulation

Connections

HSS Connection

About this detail

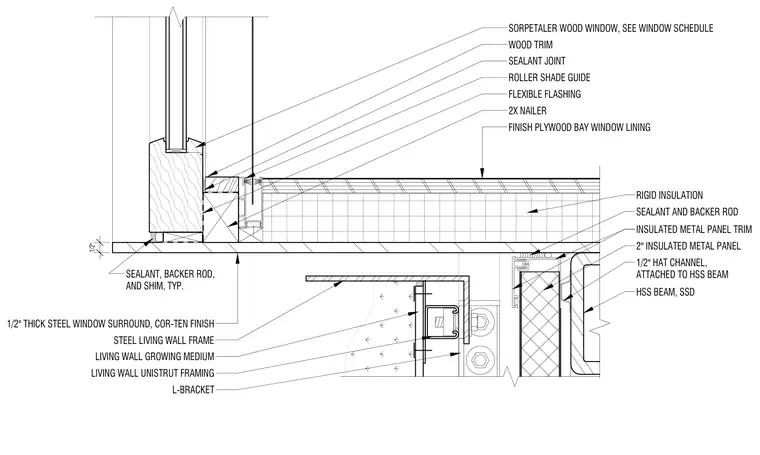

A Sorpetaler wood window sits within a half-inch thick Cor-Ten finish steel window surround, sealed at the base with sealant, backer rod, and a shim. The window assembly connects to a two-inch nailer, finish plywood bay window lining, and flexible flashing, with a roller shade guide positioned nearby. The adjacent exterior wall consists of a two-inch insulated metal panel backed by rigid insulation, secured with half-inch hat channels attached to a hollow structural section steel beam. Below the window line, a steel living wall frame supports growing medium and is anchored by Unistrut framing and L-brackets.
