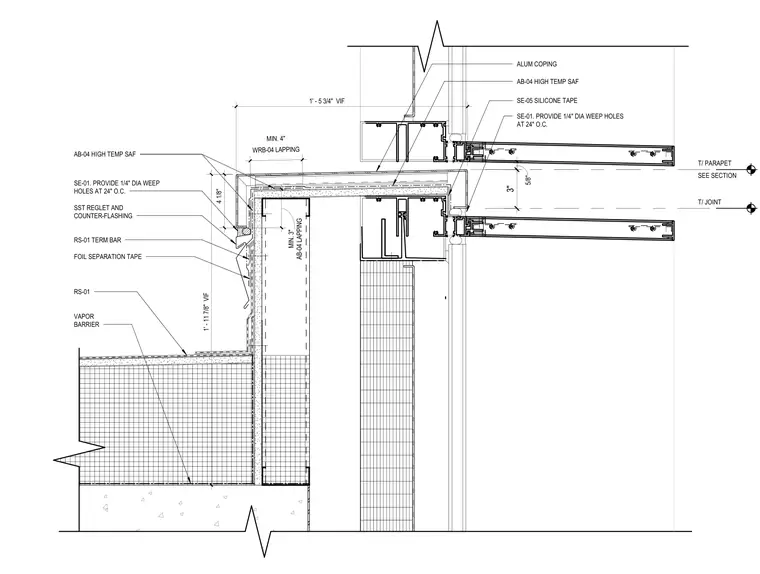

An aluminum coping caps the parapet assembly, seated over high-temperature self-adhering flashing and foil separation tape. A stainless steel reglet and counter-flashing integrate with the vapor barrier and termination bar on the exterior face. The weather-resistant barrier laps a minimum of 4 inches, while the self-adhering flashing laps a minimum of 3 inches. One-quarter-inch diameter weep holes are spaced at 24 inches on center. Silicone tape and continuous sealant joints seal the mechanical screen attachment.
T/ PARAPET T/ JOINT 3" RS-01 FOIL SEPARATION TAPE AB-04 HIGH TEMP SAF SST REGLET AND COUNTER-FLASHING SE-01. PROVIDE 1/4" DIA WEEP HOLES AT 24" O.C. WRB-04 LAPPING MIN. 4" AB-04 LAPPING MIN. 3" SE-05 SILICONE TAPE SE-01. PROVIDE 1/4" DIA WEEP HOLES AT 24" O.C. RS-01 TERM BAR VAPOR BARRIER AB-04 HIGH TEMP SAF 4 1/8" 1' - 5 3/4" VIF 1' - 11 7/8" VIF ALUM COPING SEE SECTION 5/8"
