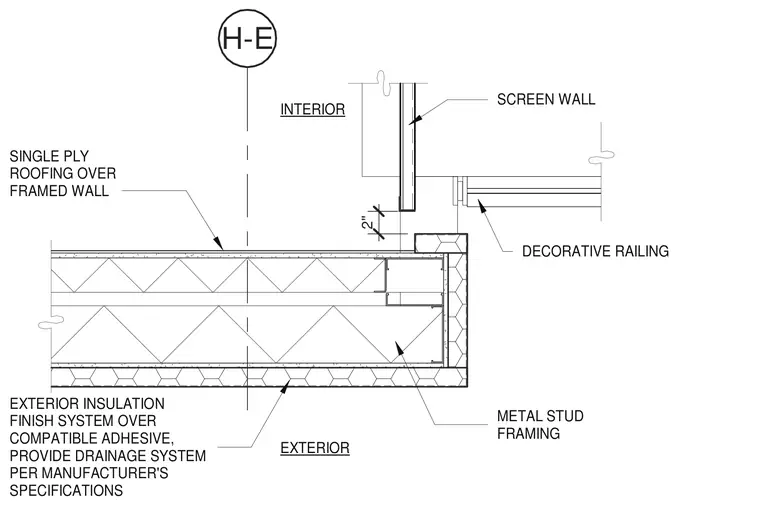

Single-ply roofing is applied over framed wall construction featuring metal stud framing and exterior insulation finish system installed over a compatible adhesive with a manufacturer-specified drainage system. A decorative railing and a screen wall align above the termination with a two-inch clearance.
H-E INTERIOR EXTERIOR SINGLE PLY ROOFING OVER FRAMED WALL METAL STUD FRAMING EXTERIOR INSULATION FINISH SYSTEM OVER COMPATIBLE ADHESIVE, PROVIDE DRAINAGE SYSTEM PER MANUFACTURER'S SPECIFICATIONS 2" SCREEN WALL DECORATIVE RAILING
