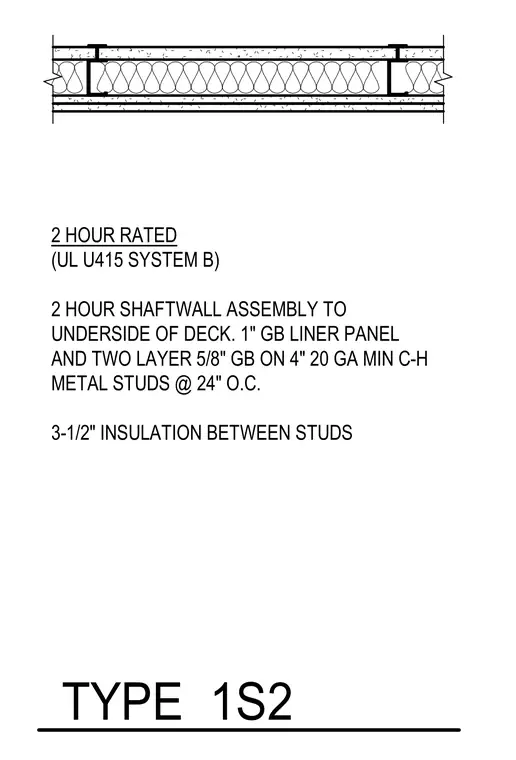

This two hour rated shaftwall assembly conforms to UL U415 System B and extends to the underside of the deck. The construction consists of a one inch gypsum board liner panel and two layers of five-eighths inch gypsum board supported on four inch twenty gauge minimum C-H metal studs spaced at twenty-four inches on center. Three and a half inches of insulation are installed between the studs.
2 HOUR RATED (UL U415 SYSTEM B) 2 HOUR SHAFTWALL ASSEMBLY TO UNDERSIDE OF DECK. 1" GB LINER PANEL AND TWO LAYER 5/8" GB ON 4" 20 GA MIN C-H METAL STUDS @ 24" O.C. 3-1/2" INSULATION BETWEEN STUDS TYPE 1S2
