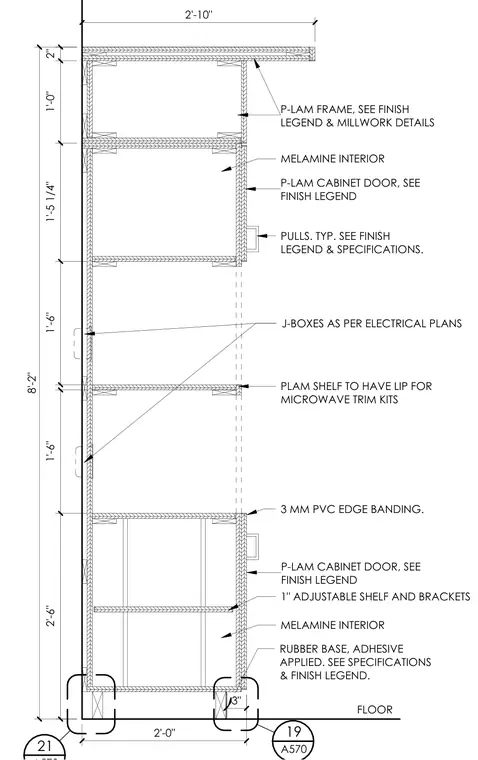

This built-in millwork assembly features a plastic-laminate frame with a melamine interior and three-millimeter PVC edge banding on exposed edges. Plastic-laminate cabinet doors with typical pulls are installed with a two-foot-six-inch lower compartment and adjustable one-inch shelving with brackets. A designated microwave shelf includes a lip for microwave trim kits, positioned above lower storage and below upper compartments. Electrical junction boxes are coordinated per electrical plans within the rear wall cavity. The base of the unit sits on a rubber base adhered to the floor.
3 MM PVC EDGE BANDING. J-BOXES AS PER ELECTRICAL PLANS FLOOR 8'-2" 1" ADJUSTABLE SHELF AND BRACKETS 2" 1'-0" 1'-5 1/4" 1'-6" PLAM SHELF TO HAVE LIP FOR MICROWAVE TRIM KITS 1'-6" 2'-6" P-LAM CABINET DOOR, SEE FINISH LEGEND P-LAM CABINET DOOR, SEE FINISH LEGEND 2'-0" P-LAM FRAME, SEE FINISH LEGEND & MILLWORK DETAILS A570 19 21 MELAMINE INTERIOR MELAMINE INTERIOR PULLS. TYP. SEE FINISH LEGEND & SPECIFICATIONS. RUBBER BASE, ADHESIVE APPLIED. SEE SPECIFICATIONS & FINISH LEGEND. 3" 2'-10"
