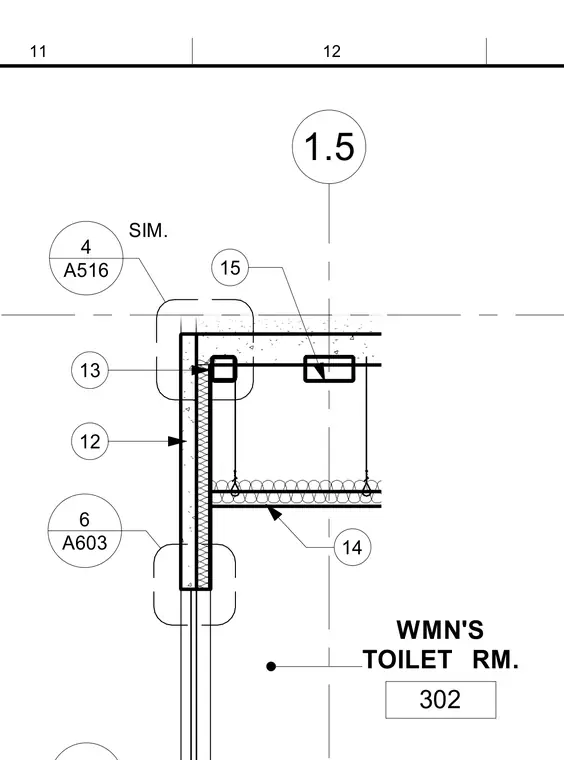

An interior partition wall meets a suspended acoustical ceiling system inside Women's Restroom Room 302. The assembly features wall finish materials, suspended ceiling framing, and hanger wires secured above. Detail references link to adjacent sheet locations for construction coordination.
1.5 WMN'S TOILET RM. 302 14 12 13 15 A603 6 A516 4 SIM. 11 12
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
