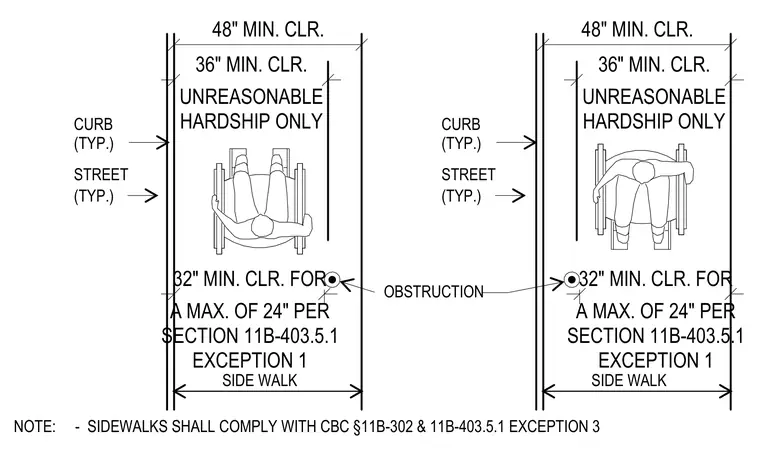

Sidewalk paths maintain a standard forty-eight-inch minimum clearance between curbs and typical obstructions. Reduced clearances of thirty-six inches are permitted under unreasonable hardship conditions. Narrower thirty-two-inch clearances are allowed for a maximum length of twenty-four inches per Section 11B-403.5.1 Exception 1. All sidewalks comply with California Building Code Section 11B-302 and Section 11B-403.5.1 Exception 3.
SIDE WALK SIDE WALK (TYP.) (TYP.) OBSTRUCTION CURB STREET (TYP.) (TYP.) CURB STREET 48" MIN. CLR. 36" MIN. CLR. UNREASONABLE HARDSHIP ONLY 48" MIN. CLR. 36" MIN. CLR. UNREASONABLE HARDSHIP ONLY 32" MIN. CLR. FOR A MAX. OF 24" PER SECTION 11B-403.5.1 EXCEPTION 1 32" MIN. CLR. FOR A MAX. OF 24" PER SECTION 11B-403.5.1 EXCEPTION 1 NOTE: - SIDEWALKS SHALL COMPLY WITH CBC §11B-302 & 11B-403.5.1 EXCEPTION 3
