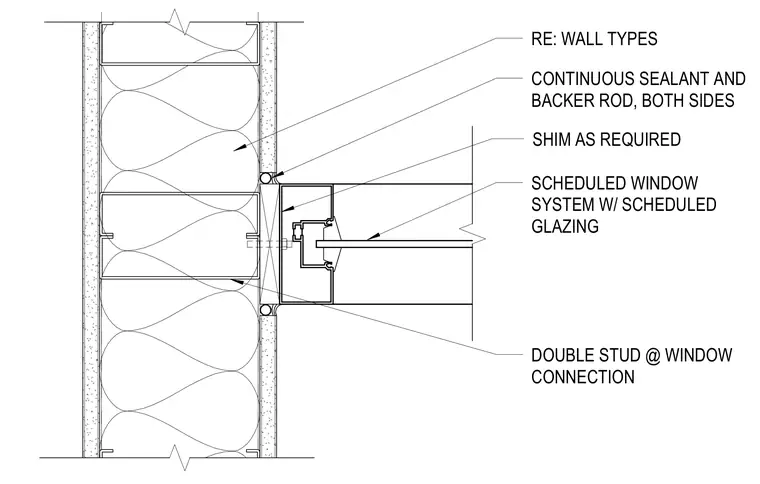

A scheduled window system with scheduled glazing connects to a framed wall featuring double studs at the window connection. Shims are installed as required for alignment between the frame and wall assembly. Continuous sealant and backer rod are applied on both sides of the window jamb intersection to seal the joint.
RE: WALL TYPES CONTINUOUS SEALANT AND BACKER ROD, BOTH SIDES SCHEDULED WINDOW SYSTEM W/ SCHEDULED GLAZING SHIM AS REQUIRED DOUBLE STUD @ WINDOW CONNECTION
