Architectural · A-2CA3D

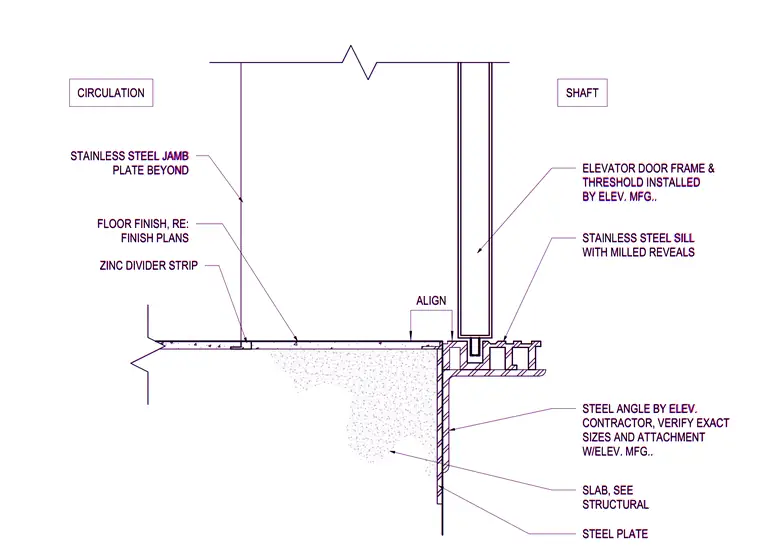

Elevator Door Threshold and Sill Detail at Floor Slab

Materials

Elements

Partitions Doors Floors / Slabs Connections / Plates

About this detail

An elevator door threshold and sill assembly integrates with the floor slab and circulation floor finish. A stainless steel sill with milled reveals rests on a steel angle and steel plate anchored to the structural slab edge. The elevator door frame and threshold are installed by the elevator manufacturer, with exact sizes and attachment verified in the field. A zinc divider strip separates the circulation floor finish from the threshold alignment.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
