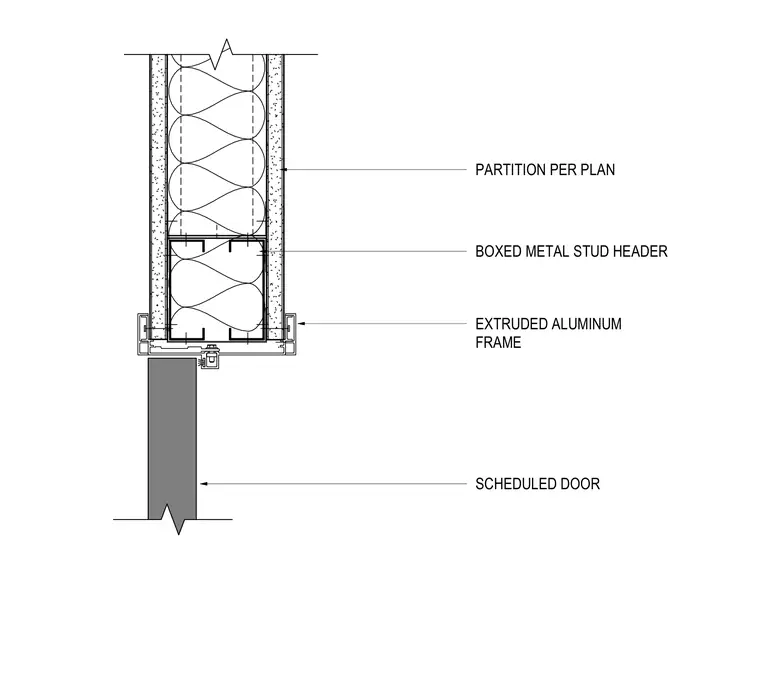

An extruded aluminum door frame sits beneath a boxed metal stud header within a partition wall framed per plan. Gypsum board finishes both sides of the cold-formed steel stud framing above the opening. The aluminum frame secures the scheduled door at the head condition.
EXTRUDED ALUMINUM FRAME PARTITION PER PLAN SCHEDULED DOOR BOXED METAL STUD HEADER
