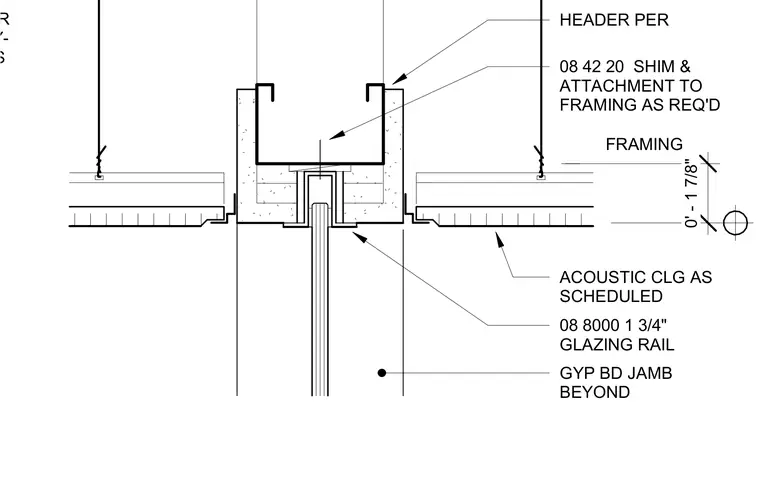

The assembly features a one-half-inch clear laminated fully-tempered glass panel secured in a one-and-three-quarter-inch glazing rail. The rail connects to overhead framing via shims and attachments as required by the specification. Gypsum board jambs extend beyond the framing, bordered by scheduled acoustic ceilings on both sides.
08 8000 1 3/4" GLAZING RAIL ACOUSTIC CLG AS SCHEDULED GYP BD JAMB BEYOND 0' - 1 7/8" FRAMING 08 42 20 SHIM & ATTACHMENT TO FRAMING AS REQ'D HEADER PER 08 8000, 1/2" CLEAR LAMINATED FULLY- TEMPERED GLASS
