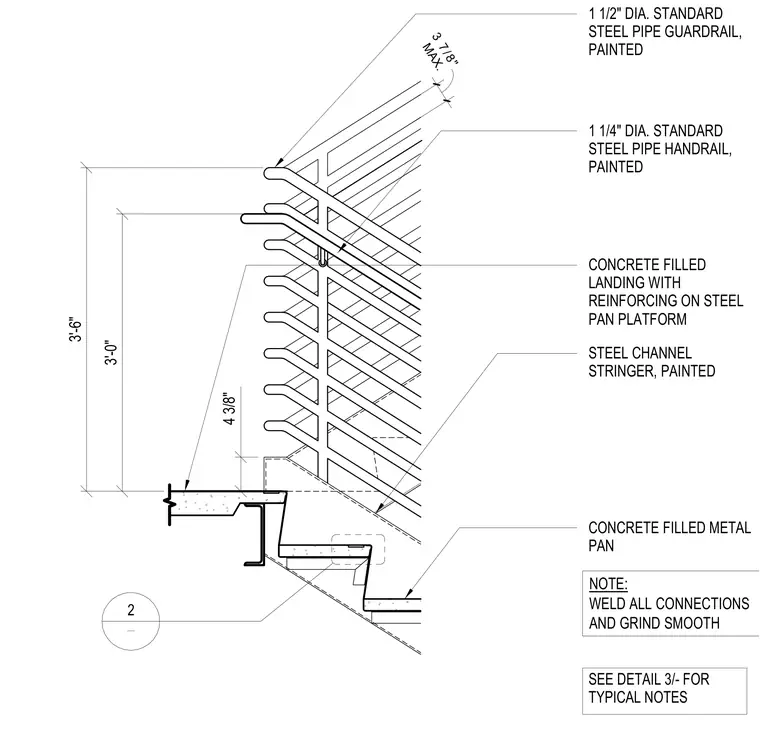

A 1-1/2-inch-diameter standard steel pipe guardrail is mounted at 3'-6" above the landing, paired with a 1-1/4-inch-diameter standard steel pipe handrail at 3'-0". The assembly features a painted steel channel stringer supporting concrete-filled metal pan stairs and a concrete-filled landing platform with reinforcing steel. All connections are welded and ground smooth, maintaining a maximum 3-7/8" spacing between intermediate rails. Refer to detail 3 for typical notes.
3'-6" 3'-0" 4 3/8" 2 - 1 1/2" DIA. STANDARD STEEL PIPE GUARDRAIL, PAINTED STEEL CHANNEL STRINGER, PAINTED CONCRETE FILLED METAL PAN CONCRETE FILLED LANDING WITH REINFORCING ON STEEL PAN PLATFORM 1 1/4" DIA. STANDARD STEEL PIPE HANDRAIL, PAINTED SEE DETAIL 3/- FOR TYPICAL NOTES NOTE: WELD ALL CONNECTIONS AND GRIND SMOOTH MAX. 3 7/8"
