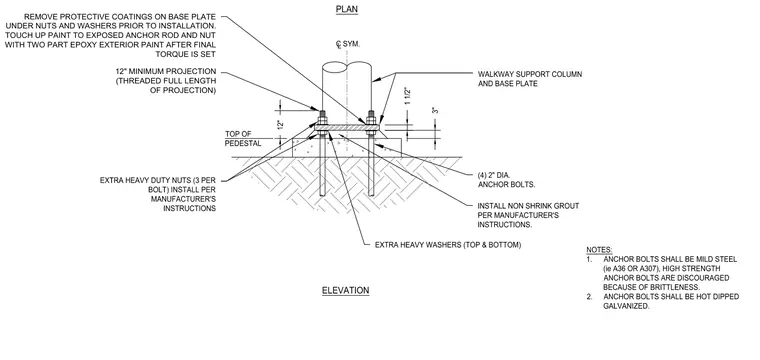

A walkway support column and base plate bear upon a concrete pedestal with non-shrink grout installed underneath. Four 2-inch diameter hot-dipped galvanized mild steel anchor bolts secure the base plate, featuring extra heavy-duty nuts with three per bolt and extra heavy washers at both the top and bottom. Protective coatings are removed from the base plate under the nuts and washers prior to installation, and touch-up paint using a two-part epoxy exterior paint is applied to the exposed anchor rod and nut after final torque is set. The anchor bolts require a 12-inch minimum projection that is threaded across its full length.
EXTRA HEAVY DUTY NUTS (3 PER BOLT) INSTALL PER MANUFACTURER'S INSTRUCTIONS (4) 2" DIA. ANCHOR BOLTS. INSTALL NON SHRINK GROUT PER MANUFACTURER'S INSTRUCTIONS. WALKWAY SUPPORT COLUMN AND BASE PLATE 12" MINIMUM PROJECTION (THREADED FULL LENGTH OF PROJECTION) TOP OF PEDESTAL REMOVE PROTECTIVE COATINGS ON BASE PLATE UNDER NUTS AND WASHERS PRIOR TO INSTALLATION. TOUCH UP PAINT TO EXPOSED ANCHOR ROD AND NUT WITH TWO PART EPOXY EXTERIOR PAINT AFTER FINAL TORQUE IS SET 12" 3" 1 1/2" PLAN ELEVATION C SYM. L NOTES: 1. ANCHOR BOLTS SHALL BE MILD STEEL (ie A36 OR A307), HIGH STRENGTH ANCHOR BOLTS ARE DISCOURAGED BECAUSE OF BRITTLENESS. 2. ANCHOR BOLTS SHALL BE HOT DIPPED GALVANIZED. EXTRA HEAVY WASHERS (TOP & BOTTOM)
