Tactile exit signs require contracted grade 2 braille per California Building Code Table 11B-703.1 and Figure 11B-703.3.1. Signs are positioned adjacent to the latch side of single doors and on the right side of double doors. The baseline of the lowest line of braille is set at a minimum of 48 inches above the finish floor, while the baseline of the highest raised character is placed at a maximum of 60 inches above the finish floor.

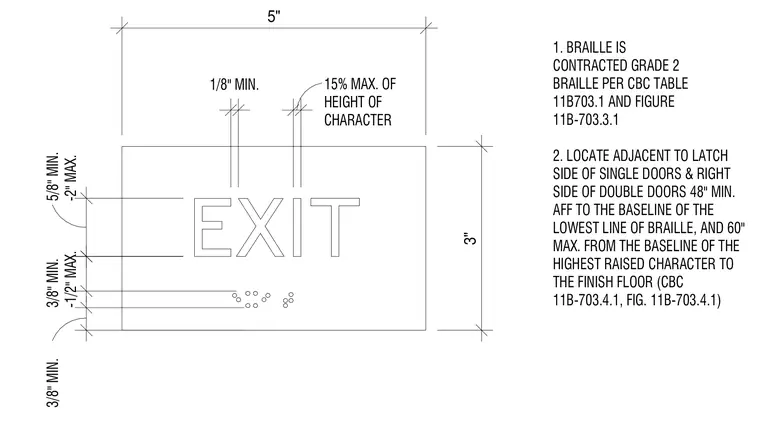

15% MAX. OF HEIGHT OF CHARACTER 5/8" MIN. -2" MAX. 3/8" MIN. -1/2" MAX. 3/8" MIN. 1. BRAILLE IS CONTRACTED GRADE 2 BRAILLE PER CBC TABLE 11B703.1 AND FIGURE 11B-703.3.1 2. LOCATE ADJACENT TO LATCH SIDE OF SINGLE DOORS & RIGHT SIDE OF DOUBLE DOORS 48" MIN. AFF TO THE BASELINE OF THE LOWEST LINE OF BRAILLE, AND 60" MAX. FROM THE BASELINE OF THE HIGHEST RAISED CHARACTER TO THE FINISH FLOOR (CBC 11B-703.4.1, FIG. 11B-703.4.1) 3" 5" 1/8" MIN.
