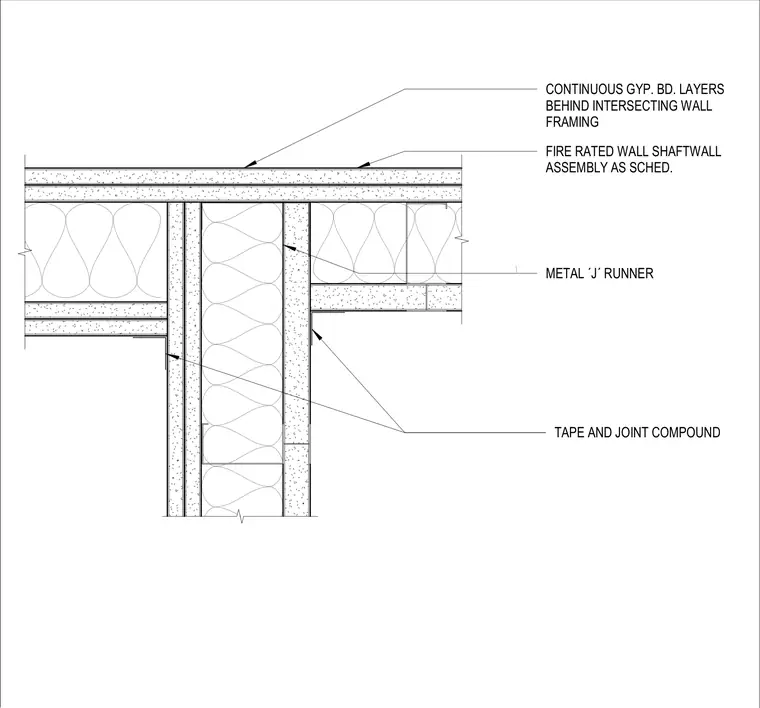

Continuous gypsum board layers run behind the intersecting wall framing of the fire-rated shaft wall assembly as scheduled. A metal J-runner secures the partition framing at the intersection. Joints are finished with tape and joint compound.
CONTINUOUS GYP. BD. LAYERS BEHIND INTERSECTING WALL FRAMING FIRE RATED WALL SHAFTWALL ASSEMBLY AS SCHED. TAPE AND JOINT COMPOUND METAL ´J´ RUNNER
