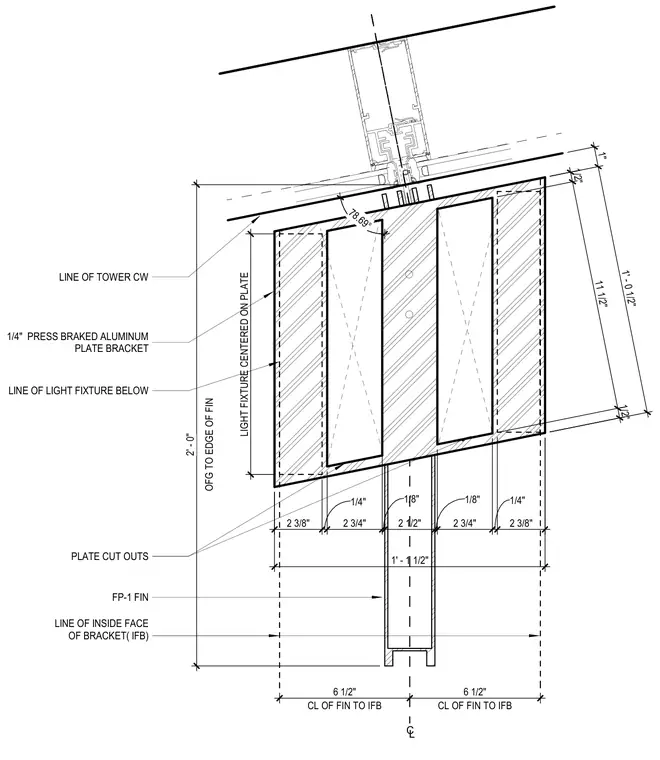

This plan detail shows a crown light valance assembly anchored to the tower curtain wall. The assembly features a quarter-inch press braked aluminum plate bracket with designated plate cut outs and an FP-1 fin aligned with the center of the plate. A light fixture is centered on the plate below, with specified offset dimensions relative to the inside face of the bracket and the edge of the fin at a 78.69 degree angle.
O F G T O E D G E O F F I N 2 ' - 0 " 7 8 . 6 9 ° 1 ' - 0 1 / 2 " 1 " 1 / 2 " 1 1 1 / 2 " 1 / 2 " 2 3 / 8 " 1 / 4 " 2 3 / 4 " 1 / 8 " 2 1 / 2 " 1 / 8 " 2 3 / 4 " 1 / 4 " 2 3 / 8 " C L O F F I N T O I F B 6 1 / 2 " C L O F F I N T O I F B 6 1 / 2 " 1 ' - 1 1 / 2 " LINE OF TOWER CW 1/4" PRESS BRAKED ALUMINUM PLATE BRACKET LINE OF LIGHT FIXTURE BELOW FP-1 FIN PLATE CUT OUTS LINE OF INSIDE FACE OF BRACKET( IFB) L I G H T F I X T U R E C E N T E R E D O N P L A T E CL
