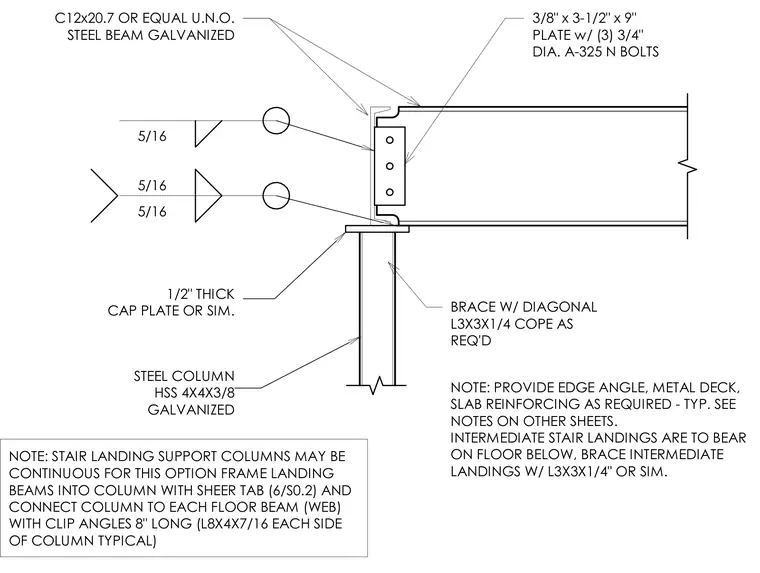

An intermediate stair landing beam frames into a galvanized HSS 4x4x3/8 steel column with a one-half-inch thick cap plate underneath. A C12x20.7 steel channel beam connects to the column using a three-eighths by three-and-a-half by nine-inch shear tab fastened with three three-quarter-inch diameter A-325 N bolts. Fillet welds of five-sixteenth-inch size secure the connection between the plate and structural members. A diagonal L3x3x1/4 angle provides bracing for the intermediate landing as required. Intermediate stair landings bear on the floor below, and stair landing support columns may be continuous for this framing option.
5/16 5/16 1/2" THICK CAP PLATE OR SIM. STEEL COLUMN HSS 4X4X3/8 GALVANIZED C12x20.7 OR EQUAL U.N.O. STEEL BEAM GALVANIZED 5/16 3/8" x 3-1/2" x 9" PLATE w/ (3) 3/4" DIA. A-325 N BOLTS NOTE: PROVIDE EDGE ANGLE, METAL DECK, SLAB REINFORCING AS REQUIRED - TYP. SEE NOTES ON OTHER SHEETS. INTERMEDIATE STAIR LANDINGS ARE TO BEAR ON FLOOR BELOW, BRACE INTERMEDIATE LANDINGS W/ L3X3X1/4" OR SIM. BRACE W/ DIAGONAL L3X3X1/4 COPE AS REQ'D NOTE: STAIR LANDING SUPPORT COLUMNS MAY BE CONTINUOUS FOR THIS OPTION FRAME LANDING BEAMS INTO COLUMN WITH SHEER TAB (6/S0.2) AND CONNECT COLUMN TO EACH FLOOR BEAM (WEB) WITH CLIP ANGLES 8" LONG (L8X4X7/16 EACH SIDE OF COLUMN TYPICAL)
