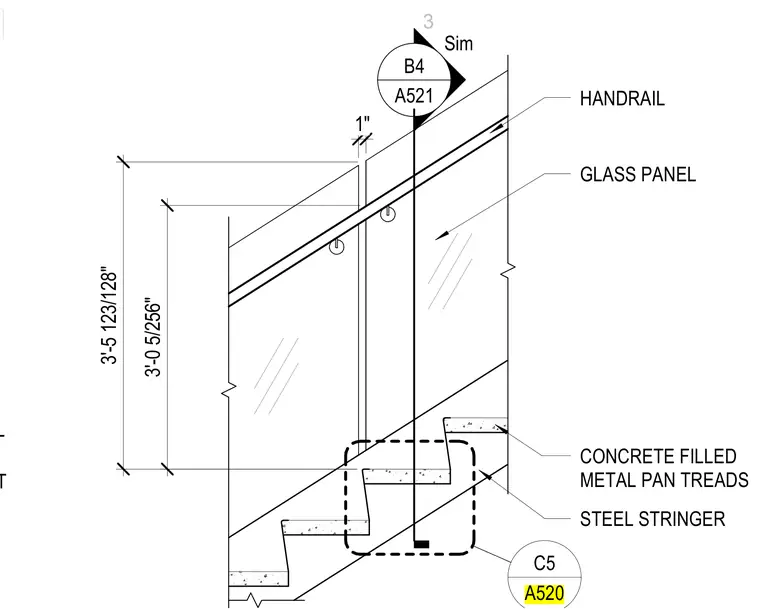

This stair railing assembly features a stainless steel handrail and glass panels secured to 2 inch by 2 inch painted steel posts anchored along a steel stringer. The stair construction incorporates concrete filled metal pan treads. Dimensions indicate a 3 foot 0 and 5/256 inch height to the handrail from the tread nose, with an overall railing height of 3 foot 5 and 123/128 inches. A 1 inch gap separates adjacent glass panels.
2" X 2" PAINTED STEEL POST STAINLESS STEEL HANDRAIL STEEL STRINGER GLASS PANEL HANDRAIL 3'-5 123/128" 3'-0 5/256" B4 A521 Sim CONCRETE FILLED METAL PAN TREADS A520 C5 1" 3
