An interior partition assembly features 8-inch cold-formed metal stud framing with stud spacing coordinated with structural drawings. Cavities are filled with sound attenuation batt insulation. Both sides of the framing are finished with 5/8-inch Type X gypsum wall board and specified wall finishes per the finish schedule.

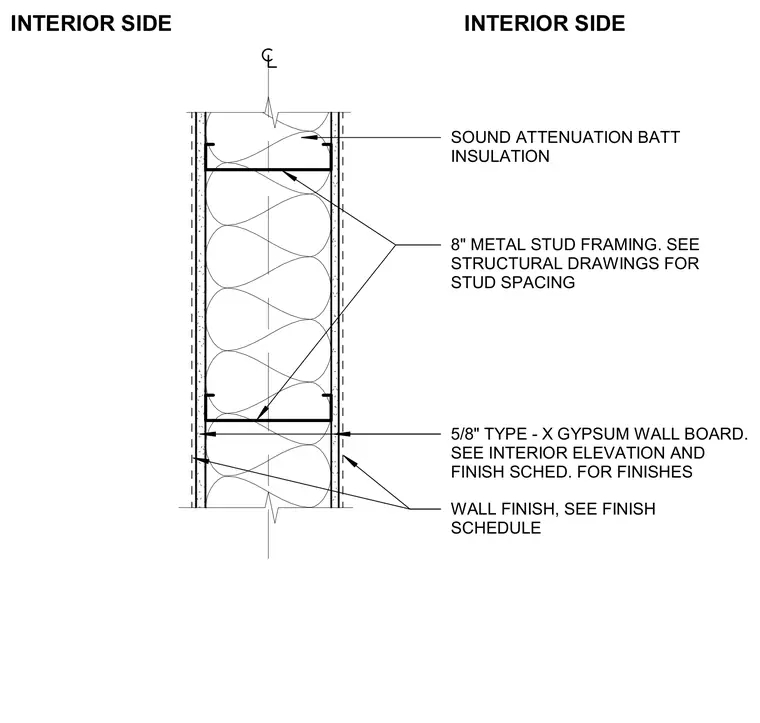

INTERIOR SIDE 8" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION INTERIOR SIDE 5/8" TYPE - X GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE
