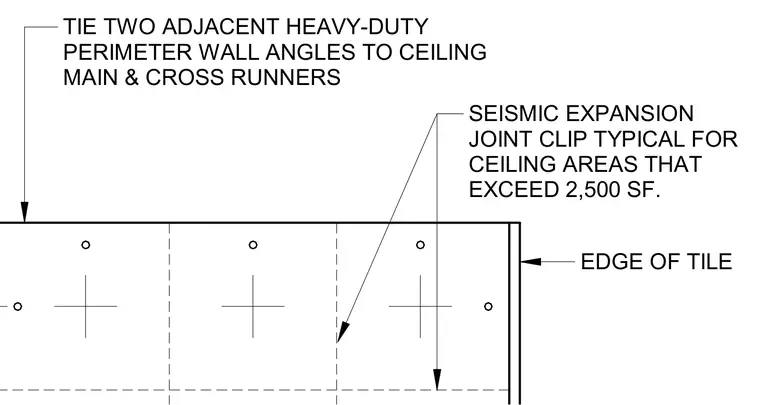

Two adjacent heavy-duty perimeter wall angles tie directly to the ceiling main and cross runners near the edge of the tile. A seismic expansion joint clip is required for ceiling areas that exceed 2,500 square feet.
TIE TWO ADJACENT HEAVY-DUTY PERIMETER WALL ANGLES TO CEILING MAIN & CROSS RUNNERS EDGE OF TILE SEISMIC EXPANSION JOINT CLIP TYPICAL FOR CEILING AREAS THAT EXCEED 2,500 SF.
