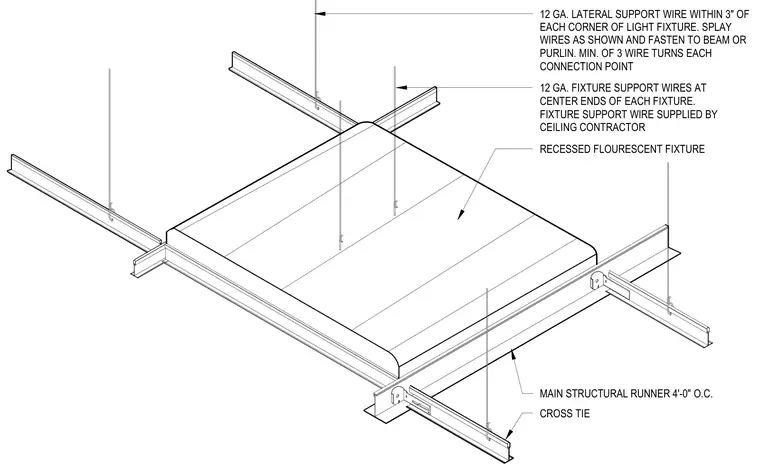

A recessed fluorescent fixture is supported within a suspended ceiling grid comprised of main structural runners spaced at four feet on center and cross ties. Twelve gauge fixture support wires are attached at the center ends of each fixture, supplied by the ceiling contractor. Twelve gauge lateral support wires are positioned within three inches of each corner of the light fixture. These wires are splayed and fastened to the overhead beam or purlin with a minimum of three wire turns at each connection point.
RECESSED FLOURESCENT FIXTURE CROSS TIE MAIN STRUCTURAL RUNNER 4'-0" O.C. 12 GA. LATERAL SUPPORT WIRE WITHIN 3" OF EACH CORNER OF LIGHT FIXTURE. SPLAY WIRES AS SHOWN AND FASTEN TO BEAM OR PURLIN. MIN. OF 3 WIRE TURNS EACH CONNECTION POINT 12 GA. FIXTURE SUPPORT WIRES AT CENTER ENDS OF EACH FIXTURE. FIXTURE SUPPORT WIRE SUPPLIED BY CEILING CONTRACTOR
