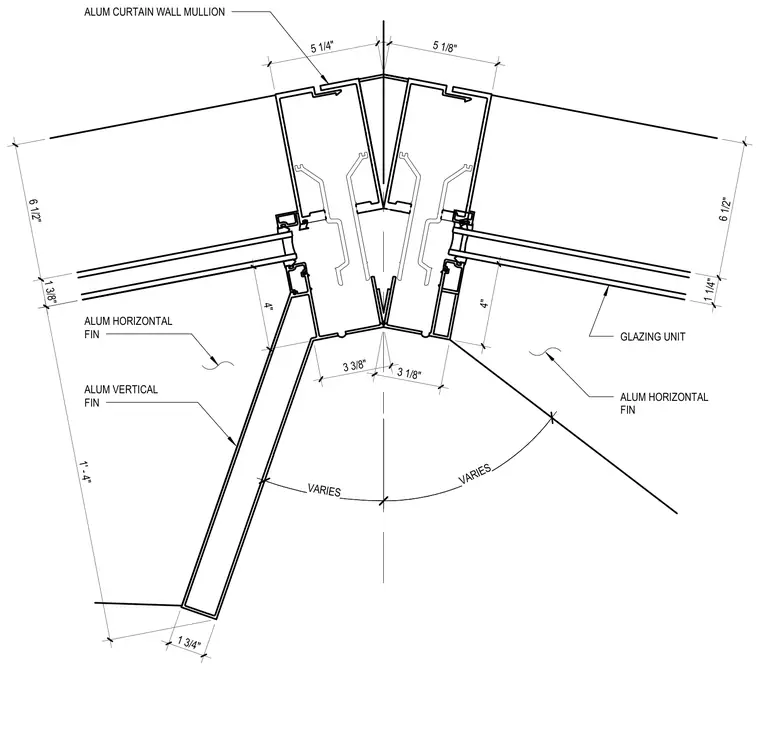

An aluminum curtain wall inside corner assembly joins two glazing units via aluminum curtain wall mullions. The exterior features protruding aluminum vertical fins and horizontal fins spaced at variable dimensions. The mullions are dimensioned with widths of 5 1/4 inches and 5 1/8 inches, and a depth of 4 inches. The glass glazing units are secured within the aluminum framing members.
GLAZING UNIT ALUM HORIZONTAL FIN ALUM CURTAIN WALL MULLION ALUM VERTICAL FIN ALUM HORIZONTAL FIN 1 3/4" 3 3/8" 3 1/8" 5 1/4" 5 1/8" 6 1/2" 1 1/4" 4" 4" 1' - 4" 6 1/2" 1 3/8" VARIES VARIES
