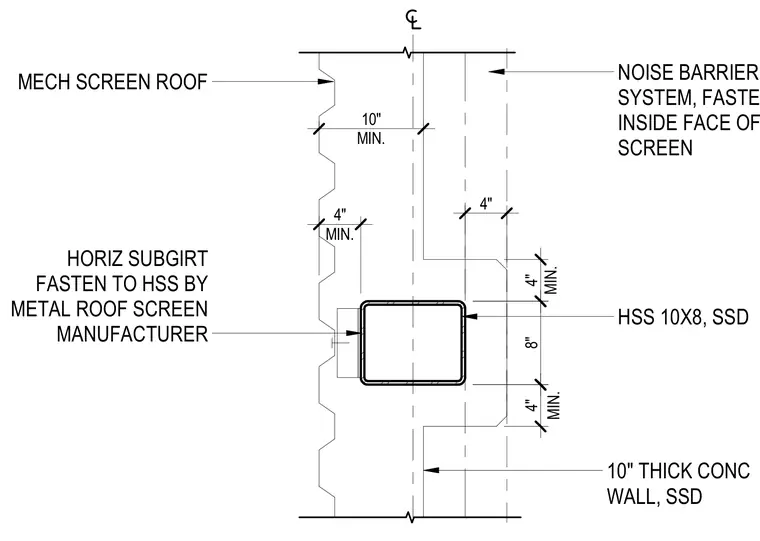

A noise barrier wall system is fastened to the inside face of a mechanical screen hollow structural section measuring 10 by 8 inches. The structural steel tube is positioned adjacent to a 10-inch thick concrete wall. Horizontal subgirts are fastened to the hollow structural section by the metal roof screen manufacturer with specified minimum clearances.
4" 8" MIN. 4" MIN. 4" MIN. 4" MIN. 10" NOISE BARRIER WALL SYSTEM, FASTEN TO INSIDE FACE OF MECH SCREEN HSS 10X8, SSD 10" THICK CONC WALL, SSD HORIZ SUBGIRT FASTEN TO HSS BY METAL ROOF SCREEN MANUFACTURER MECH SCREEN ROOF
