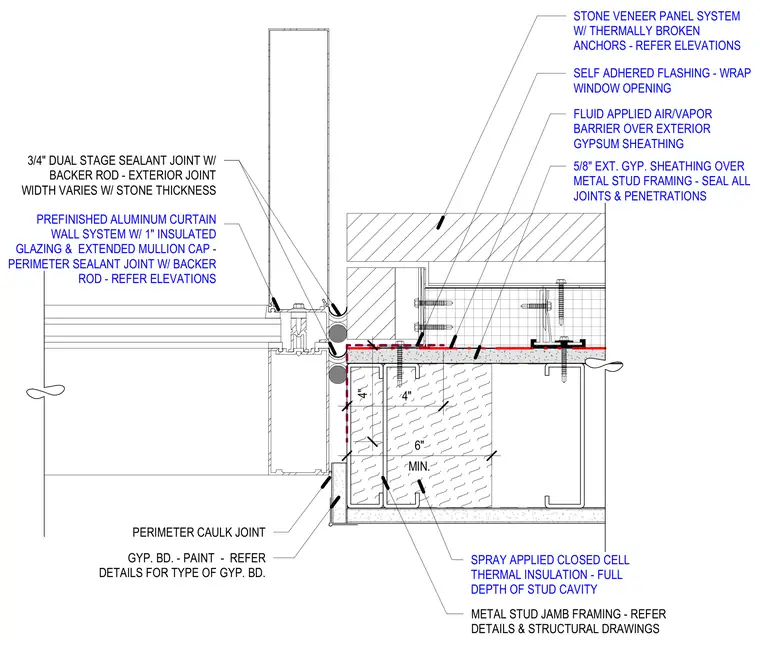

Junction between a prefinished aluminum curtain wall system with one-inch insulated glazing and an exterior stone veneer wall assembly. The wall framing consists of metal stud jamb framing packed with a minimum six-inch depth of spray-applied closed-cell thermal insulation, faced with five-eighths-inch exterior gypsum sheathing. A fluid-applied air and vapor barrier coats the exterior gypsum sheathing, and self-adhered flashing wraps the window opening. The stone veneer panels are secured using thermally broken anchors, while the interior is finished with painted gypsum board over metal stud framing. Perimeter sealant joints with backer rods seal the interface between the aluminum framing, sealant joints, and the surrounding stone and interior finishes.
3/4" DUAL STAGE SEALANT JOINT W/ BACKER ROD - EXTERIOR JOINT WIDTH VARIES W/ STONE THICKNESS METAL STUD JAMB FRAMING - REFER DETAILS & STRUCTURAL DRAWINGS GYP. BD. - PAINT - REFER DETAILS FOR TYPE OF GYP. BD. PERIMETER CAULK JOINT SPRAY APPLIED CLOSED CELL THERMAL INSULATION - FULL DEPTH OF STUD CAVITY MIN. 6" 4" 4" PREFINISHED ALUMINUM CURTAIN WALL SYSTEM W/ 1" INSULATED GLAZING & EXTENDED MULLION CAP - PERIMETER SEALANT JOINT W/ BACKER ROD - REFER ELEVATIONS 5/8" EXT. GYP. SHEATHING OVER METAL STUD FRAMING - SEAL ALL JOINTS & PENETRATIONS FLUID APPLIED AIR/VAPOR BARRIER OVER EXTERIOR GYPSUM SHEATHING SELF ADHERED FLASHING - WRAP WINDOW OPENING STONE VENEER PANEL SYSTEM W/ THERMALLY BROKEN ANCHORS - REFER ELEVATIONS
