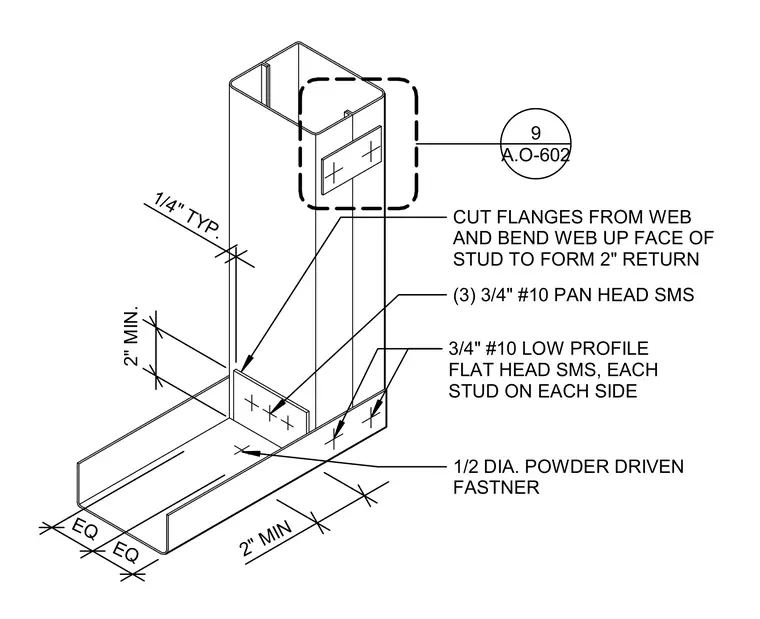

The steel stud is modified by cutting the flanges from the web and bending the web up the face of the stud to form a two-inch return. Three three-quarter-inch number ten pan head sheet metal screws secure the bent web connection. Three-quarter-inch number ten low-profile flat head sheet metal screws fasten each stud on each side. A one-half-inch diameter powder-driven fastener anchors the assembly.
2" MIN. 2" MIN EQ EQ CUT FLANGES FROM WEB AND BEND WEB UP FACE OF STUD TO FORM 2" RETURN (3) 3/4" #10 PAN HEAD SMS 3/4" #10 LOW PROFILE FLAT HEAD SMS, EACH STUD ON EACH SIDE 1/4" TYP. 1/2 DIA. POWDER DRIVEN FASTNER A.O-602 9
