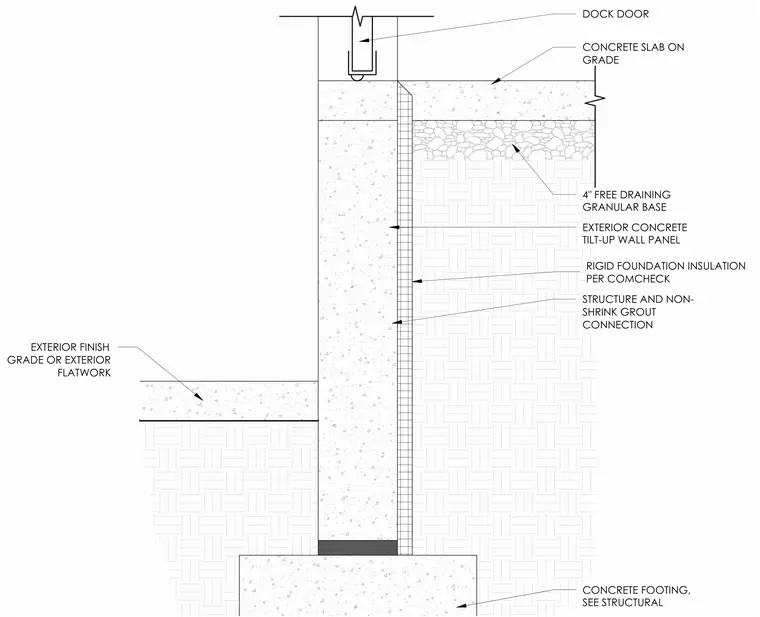

An exterior concrete tilt-up wall panel bears on a concrete footing with a structure and non-shrink grout connection. A concrete slab on grade rests over a four-inch free draining granular base adjacent to the wall interior. Rigid foundation insulation is installed along the wall per Comcheck requirements. A dock door assembly interfaces with the top of the wall and slab. Exterior finish grade or exterior flatwork meets the bottom exterior face of the wall.
CONCRETE SLAB ON GRADE 4" FREE DRAINING GRANULAR BASE STRUCTURE AND NON- SHRINK GROUT CONNECTION CONCRETE FOOTING, SEE STRUCTURAL EXTERIOR CONCRETE TILT-UP WALL PANEL EXTERIOR FINISH GRADE OR EXTERIOR FLATWORK DOCK DOOR RIGID FOUNDATION INSULATION PER COMCHECK
