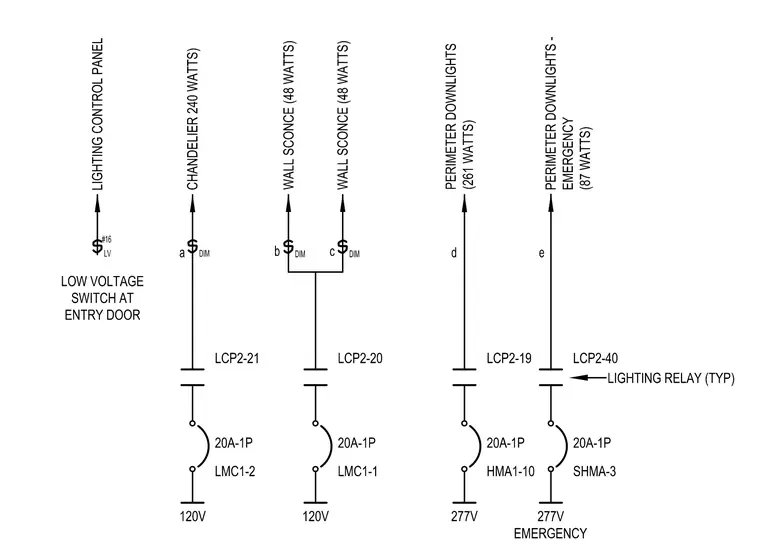

Circuit connections for a lighting control system feature a low-voltage switch with number sixteen gauge wire connected to a lighting control panel. Multiple circuits feed standard and emergency fixtures including a twenty-fourty watt chandelier, forty-eight watt wall sconces, two hundred sixty-one watt perimeter downlights, and eighty-seven watt emergency perimeter downlights. Each circuit incorporates twenty-amp single-pole breakers, lighting relays, and connections to distribution panels operating at one hundred twenty volts or two hundred seventy volts.
