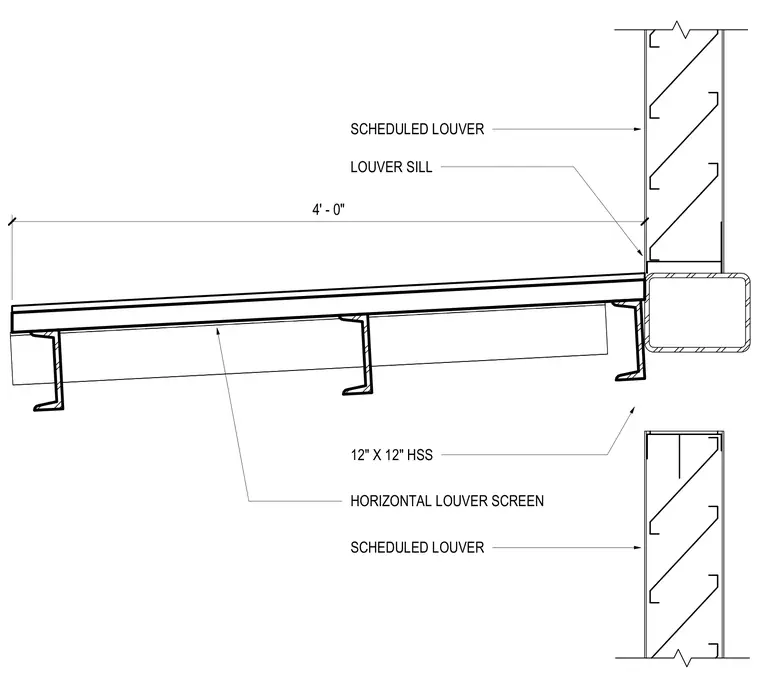

A twelve-inch by twelve-inch hollow structural section supports a horizontal louver screen spanning four feet with scheduled louvers and a louver sill.
4' - 0" 12" X 12" HSS LOUVER SILL SCHEDULED LOUVER SCHEDULED LOUVER HORIZONTAL LOUVER SCREEN
