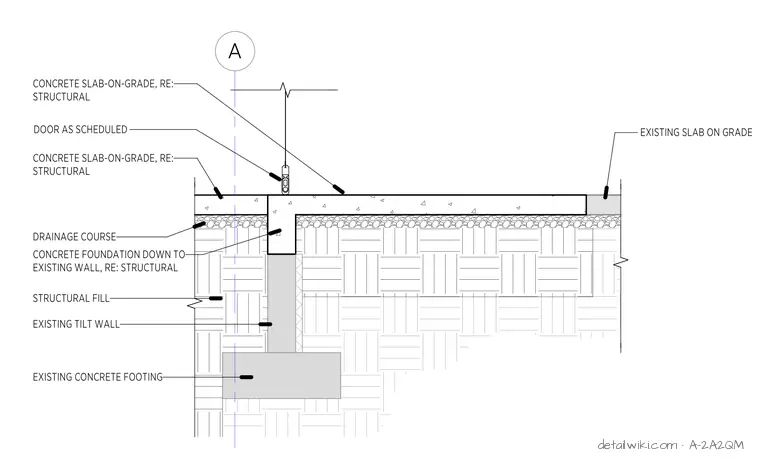

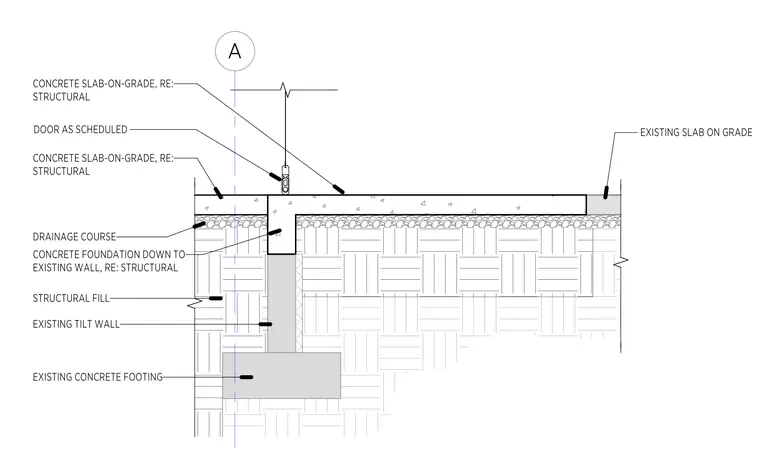

New concrete slab-on-grade interfaces with an existing tilt-up wall assembly. The new slab bears on a concrete foundation stem wall supported by the existing concrete footing. A drainage course lies beneath the new slab, positioned adjacent to the existing slab-on-grade. A door location is provided per schedule, with slab and foundation structural requirements referenced to the structural drawings.
