Maneuvering Clearances at Swing Doors

Elements

About this detail

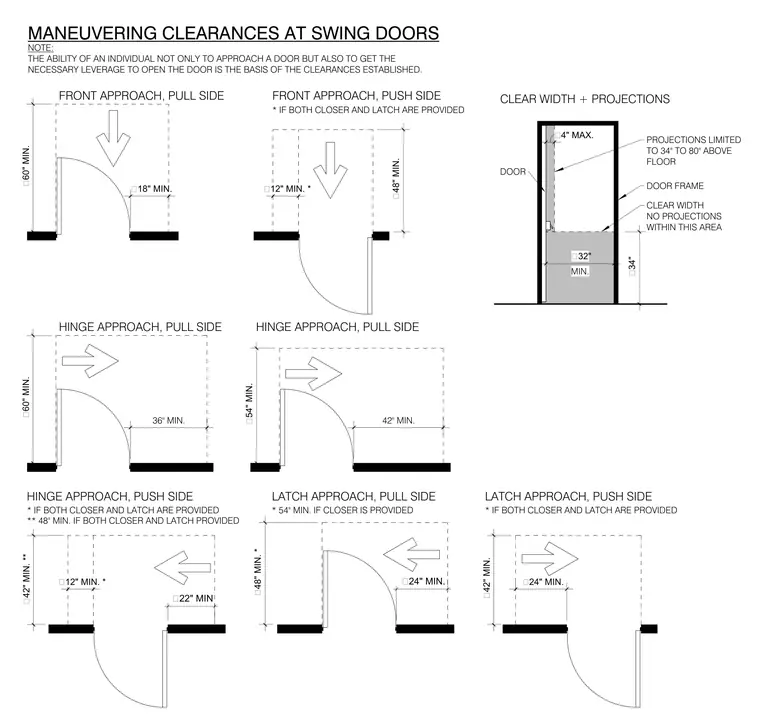

Maneuvering clearances for front, hinge, and latch approaches at swing doors apply to both pull and push sides. Minimum floor space dimensions range from twenty-four inches to sixty inches depending on the approach direction, door hardware such as closers and latches, and projection limits between thirty-four and eighty inches above the finished floor. A clear width of thirty-two inches minimum is maintained with no projections allowed within the specified opening area.
