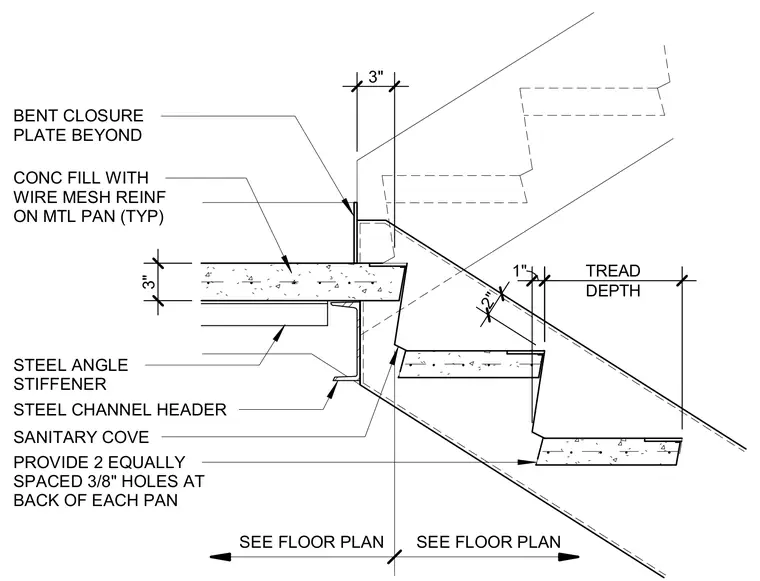

An intermediate stair landing assembly features a three-inch concrete fill with wire mesh reinforcement supported on a metal pan, framed by a steel channel header and a steel angle stiffener. A bent closure plate is positioned beyond the slab edge, and the concrete landing ties into the pan stairs with a sanitary cove detail. Each pan includes two equally spaced three-eighth-inch holes at the back.
3" SEE FLOOR PLAN SEE FLOOR PLAN BENT CLOSURE PLATE BEYOND CONC FILL WITH WIRE MESH REINF ON MTL PAN (TYP) STEEL ANGLE STIFFENER STEEL CHANNEL HEADER 3" 2" DEPTH TREAD 1" SANITARY COVE PROVIDE 2 EQUALLY SPACED 3/8" HOLES AT BACK OF EACH PAN
