Structural · A-29TDZ

Protected Zone Marking at Special Moment Frame

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Moment Connection

About this detail

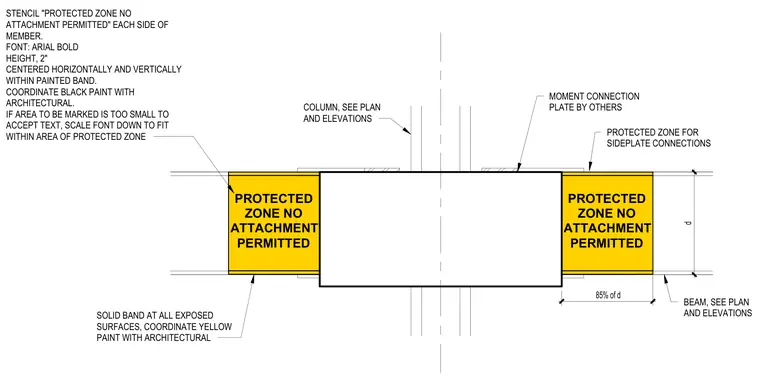

A structural steel column and framing beam meet at a moment connection furnished with sideplate connections. Solid yellow paint bands are applied to all exposed surfaces across a protected zone extending eighty-five percent of the beam depth from the connection face. Black stenciled text reading "PROTECTED ZONE NO ATTACHMENT PERMITTED" is centered horizontally and vertically on each side of the member within the yellow band using a two-inch Arial bold font. The font is scaled down to fit if the marked area is too small, and all paint colors are coordinated with architectural finishes.
