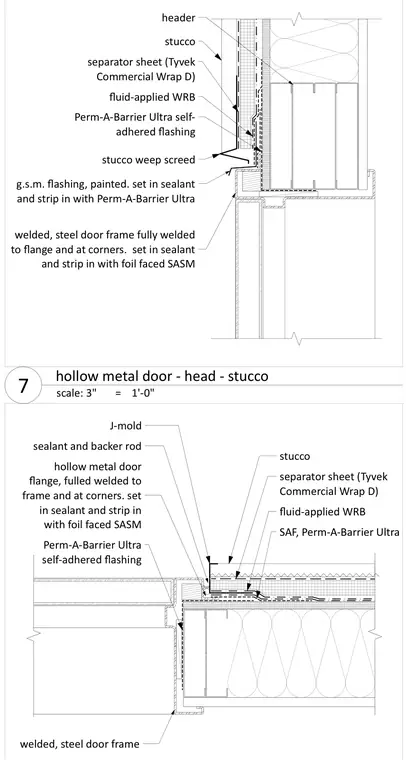

A hollow metal door frame is welded at the flange and corners and set in sealant with a foil-faced self-adhered sheet metal flashing. The head detail integrates a fluid-applied weather-resistive barrier and a Tyvek Commercial Wrap D separator sheet behind the exterior stucco finish. A Perm-A-Barrier Ultra self-adhered flashing and J-mold terminate above the frame, incorporating a stucco weep screed for moisture drainage. Sealant and backer rod seal the joint between the frame and the wall assembly.
welded, steel door frame fully welded to flange and at corners. set in sealant and strip in with foil faced SASM g.s.m. flashing, painted. set in sealant and strip in with Perm-A-Barrier Ultra header Perm-A-Barrier Ultra self- adhered flashing fluid-applied WRB separator sheet (Tyvek Commercial Wrap D) stucco stucco weep screed welded, steel door frame sealant and backer rod Perm-A-Barrier Ultra self-adhered flashing fluid-applied WRB separator sheet (Tyvek Commercial Wrap D) stucco SAF, Perm-A-Barrier Ultra J-mold hollow metal door flange, fulled welded to frame and at corners. set in sealant and strip in with foil faced SASM scale: 3" = 1'-0" 7 hollow metal door - head - stucco
