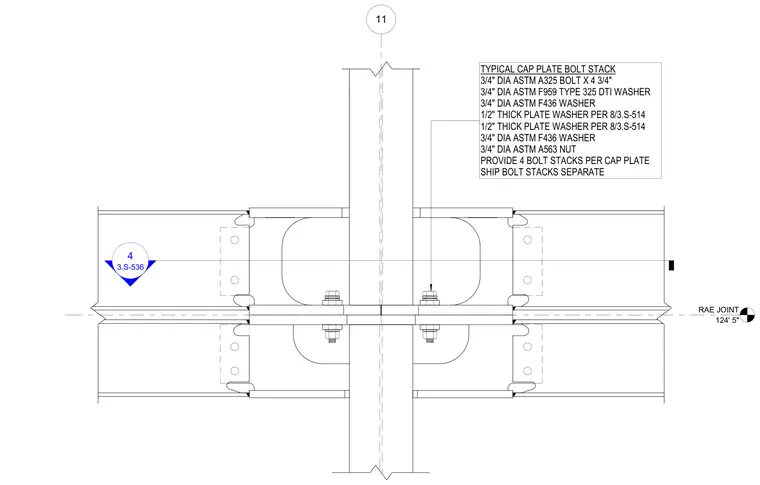

This connection assembly features a typical cap plate bolt stack utilizing a three-quarter-inch diameter ASTM A325 bolt measuring four and three-quarter inches in length. The stack includes a three-quarter-inch diameter ASTM F959 Type 325 direct tension indicator washer, a three-quarter-inch diameter ASTM F436 washer, and two one-half-inch thick plate washers per detail 8 on sheet 3.S-514. A second three-quarter-inch diameter ASTM F436 washer is positioned beneath a three-quarter-inch diameter ASTM A563 nut. Four bolt stacks are provided per cap plate and are shipped separately.
RAE JOINT 124' 5" 11 3.S-536 4 TYPICAL CAP PLATE BOLT STACK 3/4" DIA ASTM A325 BOLT X 4 3/4" 3/4" DIA ASTM F959 TYPE 325 DTI WASHER 3/4" DIA ASTM F436 WASHER 1/2" THICK PLATE WASHER PER 8/3.S-514 1/2" THICK PLATE WASHER PER 8/3.S-514 3/4" DIA ASTM F436 WASHER 3/4" DIA ASTM A563 NUT PROVIDE 4 BOLT STACKS PER CAP PLATE SHIP BOLT STACKS SEPARATE
