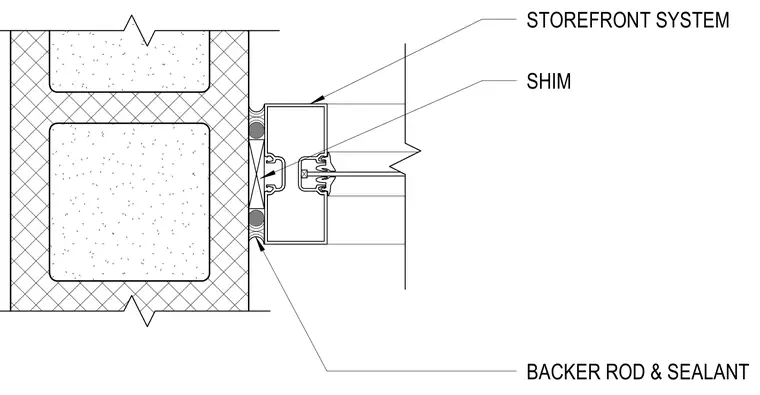

An aluminum storefront system is anchored at the interior jamb to a concrete masonry unit wall. Shims provide alignment between the framing member and the masonry substrate. Backer rod and sealant are installed at the perimeter joint to seal the junction.
