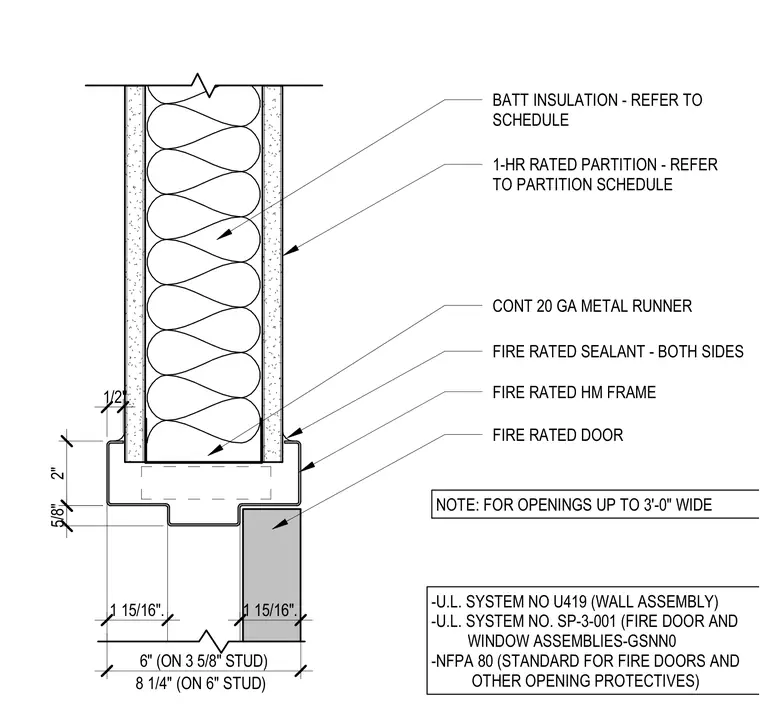

The assembly consists of a fire-rated hollow metal frame set within a one-hour rated metal stud partition. Continuous twenty-gauge metal runners anchor the framing at the head. Batt insulation fills the wall cavity, and fire-rated sealant is applied to both sides between the frame and wall finish. The door head accommodates openings up to three feet wide, complying with UL System No. U419, UL System No. SP-3-001, and NFPA 80 standards.
BATT INSULATION - REFER TO SCHEDULE 1-HR RATED PARTITION - REFER TO PARTITION SCHEDULE CONT 20 GA METAL RUNNER FIRE RATED SEALANT - BOTH SIDES FIRE RATED HM FRAME FIRE RATED DOOR NOTE: FOR OPENINGS UP TO 3'-0" WIDE 6" (ON 3 5/8" STUD) 2" 1/2" 1 15/16". 1 15/16". -U.L. SYSTEM NO U419 (WALL ASSEMBLY) -U.L. SYSTEM NO. SP-3-001 (FIRE DOOR AND WINDOW ASSEMBLIES-GSNN0 -NFPA 80 (STANDARD FOR FIRE DOORS AND OTHER OPENING PROTECTIVES) 5/8" 8 1/4" (ON 6" STUD)
