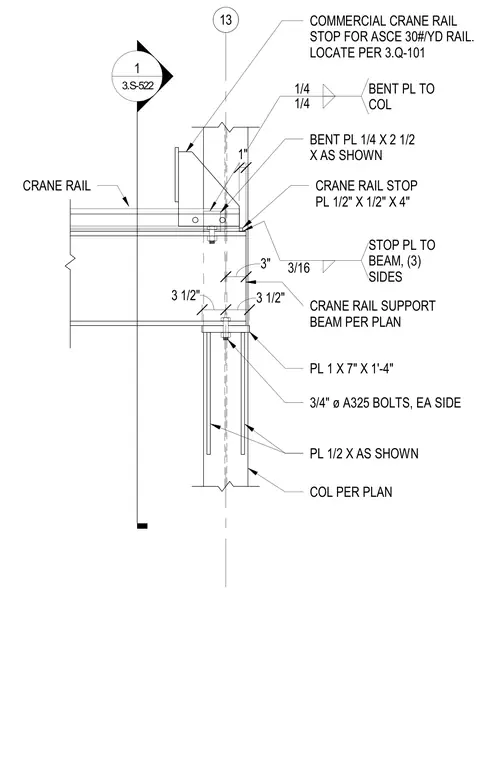

A crane rail support beam sits on a structural column per plan, secured with three-quarter-inch diameter A325 bolts on each side through one-inch by seven-inch by one-foot-four-inch plates and half-inch plates as shown. A commercial crane rail stop for ASCE thirty pound per yard rail is positioned per plan. A bent plate measuring one-quarter-inch by two-and-a-half inches as shown is welded to the column with a quarter-inch fillet weld. A crane rail stop plate measuring half-inch by half-inch by four inches is welded to the beam on three sides with a three-sixteenth-inch fillet weld.
13 3" 1 3.S-522 COL PER PLAN PL 1/2 X AS SHOWN PL 1 X 7" X 1'-4" 3/4" ø A325 BOLTS, EA SIDE CRANE RAIL SUPPORT BEAM PER PLAN 3 1/2" 3 1/2" BENT PL 1/4 X 2 1/2 X AS SHOWN 1/4 1/4 BENT PL TO COL CRANE RAIL 1" CRANE RAIL STOP PL 1/2" X 1/2" X 4" 3/16 STOP PL TO BEAM, (3) SIDES COMMERCIAL CRANE RAIL STOP FOR ASCE 30#/YD RAIL. LOCATE PER 3.Q-101
