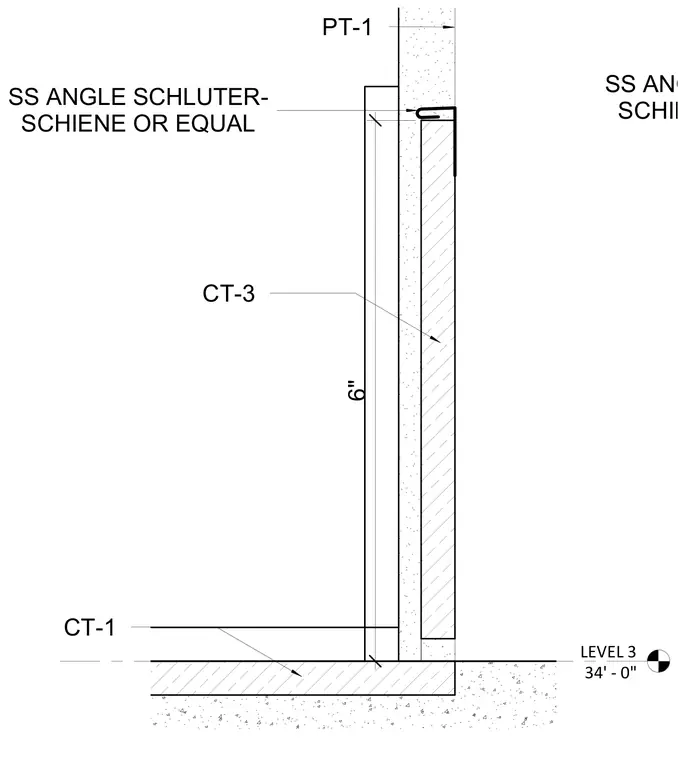

This wall base assembly features a 6-inch high ceramic tile wainscot terminating with a stainless steel Schluter-Schiene angle or equal edge trim. The gypsum wall finish receives paint designated as PT-1 above the tile line. Ceramic tile types CT-1 and CT-3 are specified for the floor and wall surfaces.
LEVEL 3 34' - 0" 6" CT-3 PT-1 SS ANGLE SCHLUTER- SCHIENE OR EQUAL CT-1 SS ANGLE SCHLUTER- SCHIENE OR EQUAL
