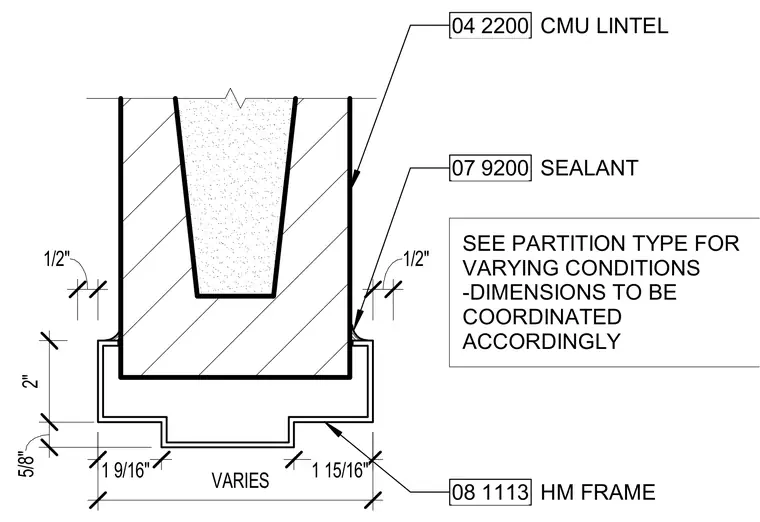

A hollow metal frame head interfaces with a concrete masonry unit lintel, maintaining specified dimensional clearances. Joint sealant is applied at the junction between the masonry and the metal frame. Dimensions vary to coordinate with partition types.
VARIES 1 9/16" 1 15/16" 5/8" 2" 04 2200 CMU LINTEL SEE PARTITION TYPE FOR VARYING CONDITIONS -DIMENSIONS TO BE COORDINATED ACCORDINGLY 08 1113 HM FRAME 07 9200 SEALANT 1/2" 1/2"
