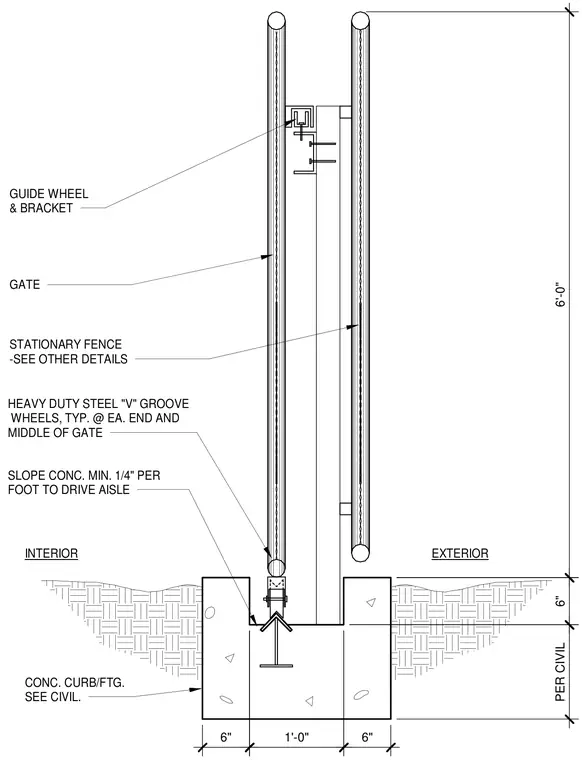

A heavy duty steel V groove wheel supports a sliding gate and rolls along a track set into a concrete curb footing, which is sized per civil engineering requirements. The concrete slab slopes a minimum of 1/4 inch per foot toward the drive aisle. An exterior guide wheel and bracket assembly stabilizes the top of the gate, and a stationary fence is positioned adjacent to the gate assembly.
EXTERIOR GUIDE WHEEL & BRACKET HEAVY DUTY STEEL "V" GROOVE WHEELS, TYP. @ EA. END AND MIDDLE OF GATE INTERIOR SLOPE CONC. MIN. 1/4" PER FOOT TO DRIVE AISLE CONC. CURB/FTG. SEE CIVIL. GATE STATIONARY FENCE -SEE OTHER DETAILS 6" 1'-0" 6" 6" PER CIVIL 6'-0"
