Architectural · A-288YT

Strut Connection to Concrete Slab or Beam

Materials

Concrete Steel

Elements

Columns Beams Ceilings Floors / Slabs Anchors / Embeds

Connections

Embed Plate

About this detail

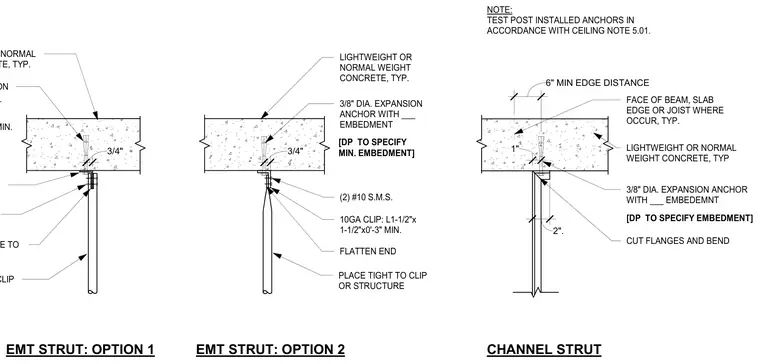

Option 1 connects an electrical metallic tubing strut to the underside of a concrete slab or beam using a three-eighths-inch diameter expansion anchor with specified embedment, a twelve-gauge clip with a one-and-one-half-inch slotted end, and two number ten sheet metal screws. Option 2 uses a ten-gauge clip measuring one and one-half by one and one-half by three inches minimum with flattened ends and two number ten sheet metal screws, placed tight to the clip or structure. The channel strut option requires cutting the flanges and bending the channel strut, secured with a three-eighths-inch diameter expansion anchor maintaining a six-inch minimum edge distance. Post-installed anchors must be tested in accordance with ceiling note five point zero one.
