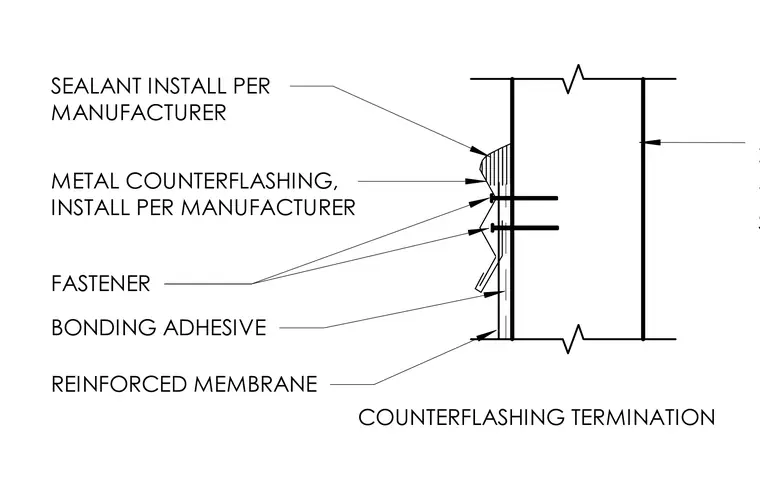

A reinforced membrane is secured to a masonry wall or wood framed wall using a bonding adhesive. Metal counterflashing is fastened to the wall surface with mechanical fasteners and sealed along its top edge with manufacturer-approved sealant. The counterflashing laps over the membrane termination to protect the edge from moisture infiltration.
COUNTERFLASHING TERMINATION REINFORCED MEMBRANE BONDING ADHESIVE METAL COUNTERFLASHING, INSTALL PER MANUFACTURER SEALANT INSTALL PER MANUFACTURER FASTENER MASONRY WALL OR WOOD FRAMED WALL - SEE STRUCTURAL
