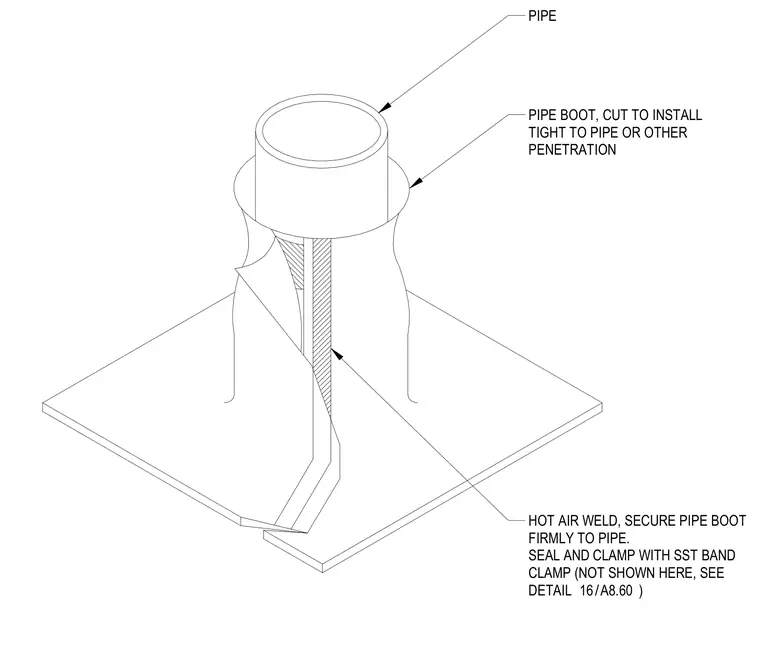

A custom pipe boot is cut to fit tightly around a pipe or other roof penetration. The overlapping seam of the boot is joined with a hot air weld to secure it firmly to the pipe. A stainless steel band clamp seals the top per adjacent detail reference.
PIPE PIPE BOOT, CUT TO INSTALL TIGHT TO PIPE OR OTHER PENETRATION HOT AIR WELD, SECURE PIPE BOOT FIRMLY TO PIPE. SEAL AND CLAMP WITH SST BAND CLAMP (NOT SHOWN HERE, SEE DETAIL ) / 16 A8.60
